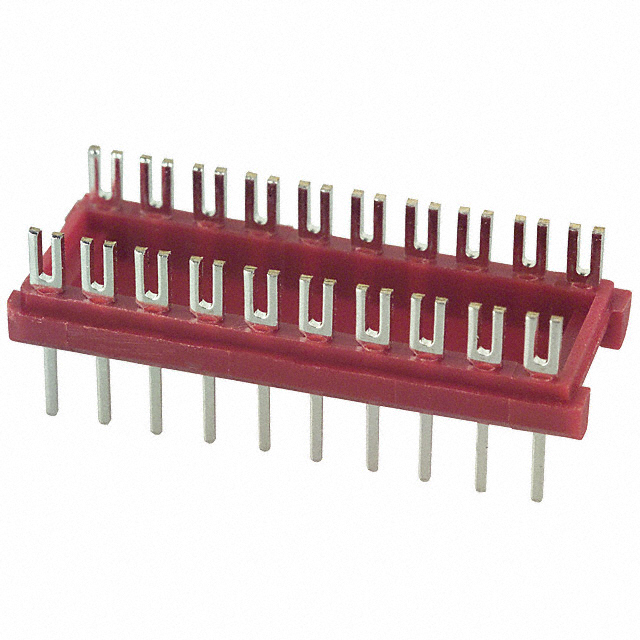

20-600-10
ActiveAries Electronics
CONN HDR DIP FORK 20POS TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
20-600-10
ActiveAries Electronics
CONN HDR DIP FORK 20POS TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 20-600-10 |
|---|---|
| Color | Black |
| Connector Type | DIP, DIL - Header |
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Type | Forked |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 0.3 in |
| Row Spacing | 7.62 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.98 | |
| 19 | $ 2.71 | |||
| 114 | $ 2.38 | |||
| 513 | $ 2.03 | |||
| 1007 | $ 1.73 | |||
| 5016 | $ 1.55 | |||
Description
General part information
20-600 Series
20 Position DIP, DIL - Header Connector Forked Tin
Documents
Technical documentation and resources
