AST0411504

Active

METZ CONNECT USA Inc.

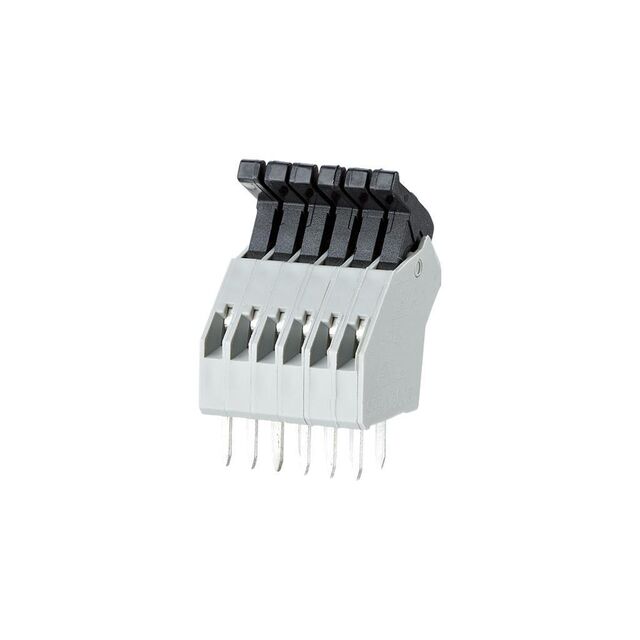

TERM BLOCK 15POS 45DEG 2.5MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AST0411504

Active

METZ CONNECT USA Inc.

TERM BLOCK 15POS 45DEG 2.5MM PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AST0411504	AST041 Series

Clamp Material - Plating	Steel	Steel
Color	Gray	Gray
Contact Material - Plating	Copper Alloy - Tin Plated	Copper Alloy - Tin Plated
Current	8 A	8 A
Features	Lever Actuated	Lever Actuated
Mating Orientation	135 °	135 °
Mating Orientation	45 °	45 °
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.098 in	0.098 in
Pitch [x]	2.5 mm	2.5 mm
Positions Per Level	15	2 - 18
Voltage	150 V	150 V
Wire Gauge [Max]	28 AWG	28 AWG
Wire Gauge [Min]	17.5 AWG	17.5 AWG
Wire Termination	Screwless - Spring Cage, Tension Clamp	Screwless - Spring Cage, Tension Clamp

AST041 Series

TERM BLOCK 3POS 45DEG 2.5MM PCB

Part	Voltage	Wire Termination	Color	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material - Plating	Positions Per Level	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current	Mating Orientation	Mating Orientation	Clamp Material - Plating	Features	Number of Levels	Pitch [x]	Pitch [x]
METZ CONNECT USA Inc. AST0410304	150 V	Screwless - Spring Cage, Tension Clamp	Gray	28 AWG	17.5 AWG	Copper Alloy - Tin Plated	3	Through Hole	-40 °C	105 ░C	8 A	135 °	45 °	Steel	Lever Actuated	1	0.098 in	2.5 mm
METZ CONNECT USA Inc. AST0411804	150 V	Screwless - Spring Cage, Tension Clamp	Gray	28 AWG	17.5 AWG	Copper Alloy - Tin Plated	18	Through Hole	-40 °C	105 ░C	8 A	135 °	45 °	Steel	Lever Actuated	1	0.098 in	2.5 mm
METZ CONNECT USA Inc. AST0411504	150 V	Screwless - Spring Cage, Tension Clamp	Gray	28 AWG	17.5 AWG	Copper Alloy - Tin Plated	15	Through Hole	-40 °C	105 ░C	8 A	135 °	45 °	Steel	Lever Actuated	1	0.098 in	2.5 mm
METZ CONNECT USA Inc. AST0410204	150 V	Screwless - Spring Cage, Tension Clamp	Gray	28 AWG	17.5 AWG	Copper Alloy - Tin Plated	2	Through Hole	-40 °C	105 ░C	8 A	135 °	45 °	Steel	Lever Actuated	1	0.098 in	2.5 mm
METZ CONNECT USA Inc. AST0410704	150 V	Screwless - Spring Cage, Tension Clamp	Gray	28 AWG	17.5 AWG	Copper Alloy - Tin Plated	7	Through Hole	-40 °C	105 ░C	8 A	135 °	45 °	Steel	Lever Actuated	1	0.098 in	2.5 mm
METZ CONNECT USA Inc. AST0410504	150 V	Screwless - Spring Cage, Tension Clamp	Gray	28 AWG	17.5 AWG	Copper Alloy - Tin Plated	5	Through Hole	-40 °C	105 ░C	8 A	135 °	45 °	Steel	Lever Actuated	1	0.098 in	2.5 mm
METZ CONNECT USA Inc. AST0411004	150 V	Screwless - Spring Cage, Tension Clamp	Gray	28 AWG	17.5 AWG	Copper Alloy - Tin Plated	10	Through Hole	-40 °C	105 ░C	8 A	135 °	45 °	Steel	Lever Actuated	1	0.098 in	2.5 mm
METZ CONNECT USA Inc. AST0410404	150 V	Screwless - Spring Cage, Tension Clamp	Gray	28 AWG	17.5 AWG	Copper Alloy - Tin Plated	4	Through Hole	-40 °C	105 ░C	8 A	135 °	45 °	Steel	Lever Actuated	1	0.098 in	2.5 mm
METZ CONNECT USA Inc. AST0411204	150 V	Screwless - Spring Cage, Tension Clamp	Gray	28 AWG	17.5 AWG	Copper Alloy - Tin Plated	12	Through Hole	-40 °C	105 ░C	8 A	135 °	45 °	Steel	Lever Actuated	1	0.098 in	2.5 mm
METZ CONNECT USA Inc. AST0410804	150 V	Screwless - Spring Cage, Tension Clamp	Gray	28 AWG	17.5 AWG	Copper Alloy - Tin Plated	8	Through Hole	-40 °C	105 ░C	8 A	135 °	45 °	Steel	Lever Actuated	1	0.098 in	2.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AST041 Series

15 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.098" (2.50mm) Through Hole

Documents

Technical documentation and resources
