Q-0B056000H108i

Active

Amphenol Custom Cable

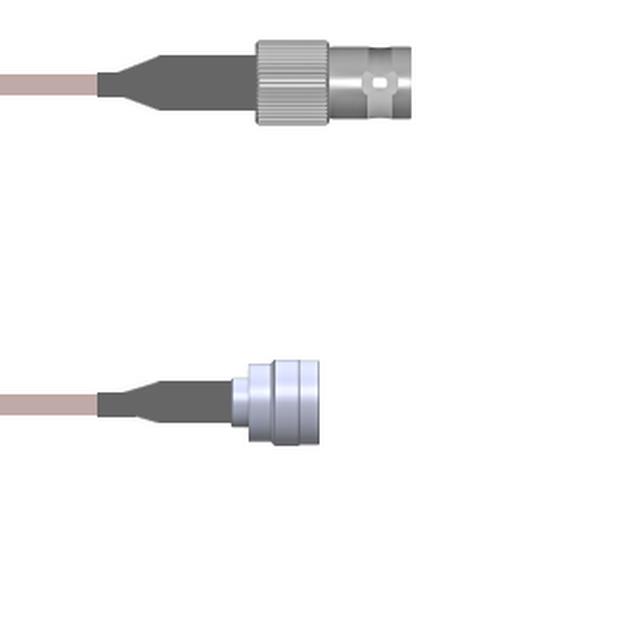

CBL ASSY BNC-TNC JACK-PLUG 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0B056000H108i

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC JACK-PLUG 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0B056000H108i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-0B0560 Series

Part	1st Connector Mounting Type	Style	Color	1st Connector	Cable Type	Frequency - Max [Max]	2nd Contact Gender	2nd Connector Mounting Type	1st Contact Gender	2nd Connector	Features	Overall Impedance	Length	Length	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-0B056000H009i	Free Hanging (In-Line)	BNC to TNC	Copper	BNC Jack	RG-142	4 GHz	Male	Free Hanging (In-Line)	Female	TNC Plug	Shielded	50 Ohms	9 "	228.6 mm
Amphenol Custom Cable Q-0B056000H0.5M	Free Hanging (In-Line)	BNC to TNC	Copper	BNC Jack	RG-142	4 GHz	Male	Free Hanging (In-Line)	Female	TNC Plug	Shielded	50 Ohms	19.69 "	50 cm
Amphenol Custom Cable Q-0B056000H018i	Free Hanging (In-Line)	BNC to TNC	Copper	BNC Jack	RG-142	4 GHz	Male	Free Hanging (In-Line)	Female	TNC Plug	Shielded	50 Ohms			457.2 mm	457.2 mm
Amphenol Custom Cable Q-0B056000H.75M	Free Hanging (In-Line)	BNC to TNC	Copper	BNC Jack	RG-142	4 GHz	Male	Free Hanging (In-Line)	Female	TNC Plug	Shielded	50 Ohms	29.53 "	750 mm
Amphenol Custom Cable Q-0B056000H084i	Free Hanging (In-Line)	BNC to TNC	Copper	BNC Jack	RG-142	4 GHz	Male	Free Hanging (In-Line)	Female	TNC Plug	Shielded	50 Ohms	84 in	2.1 m			7 ft
Amphenol Custom Cable Q-0B056000H072i	Free Hanging (In-Line)	BNC to TNC	Copper	BNC Jack	RG-142	4 GHz	Male	Free Hanging (In-Line)	Female	TNC Plug	Shielded	50 Ohms	72 in	1.8 m			6 ft
Amphenol Custom Cable Q-0B056000H048i	Free Hanging (In-Line)	BNC to TNC	Copper	BNC Jack	RG-142	4 GHz	Male	Free Hanging (In-Line)	Female	TNC Plug	Shielded	50 Ohms	48 in	1200 mm			4 ft
Amphenol Custom Cable Q-0B056000H002M	Free Hanging (In-Line)	BNC to TNC	Copper	BNC Jack	RG-142	4 GHz	Male	Free Hanging (In-Line)	Female	TNC Plug	Shielded	50 Ohms	78.7 in	2 m			6.6 ft
Amphenol Custom Cable Q-0B056000H003M	Free Hanging (In-Line)	BNC to TNC	Copper	BNC Jack	RG-142	4 GHz	Male	Free Hanging (In-Line)	Female	TNC Plug	Shielded	50 Ohms	118.1 in	3 m			9.8 '
Amphenol Custom Cable Q-0B056000H108i	Free Hanging (In-Line)	BNC to TNC	Copper	BNC Jack	RG-142	4 GHz	Male	Free Hanging (In-Line)	Female	TNC Plug	Shielded	50 Ohms	108 in	2.7 m			9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 148.33
		25	$ 145.39
		50	$ 142.46
		100	$ 139.52
		250	$ 136.58

Description

General part information

Q-0B0560 Series

Cable Assembly Coaxial BNC to TNC RG-142 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
