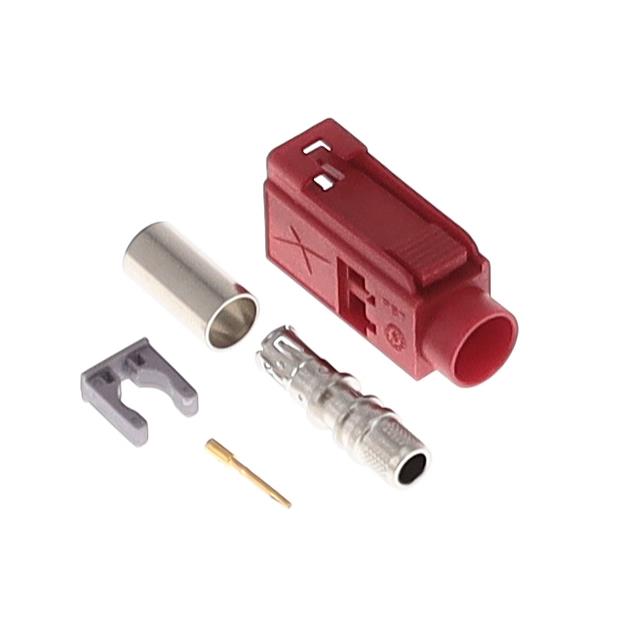

FK1FLG

Active

TAOGLAS

FAKRA GEN 1 CODE L CARMINE RED F

Search across all available documentation for this part.

Active

TAOGLAS

FAKRA GEN 1 CODE L CARMINE RED F

Technical Specifications

Parameters and characteristics commom to parts in this series

FAKRA GEN 1 CODE L CARMINE RED F

Part	Mating Cycles	Frequency - Max [Max]	Connector Type	Contact Termination	Connector Style	Mounting Type	Impedance	Features	Number of Ports	Shield Termination	Cable Group	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type
TAOGLAS FK1FLDK	25	6000 MHz	Female Socket, Jack	Crimp	Fakra, SMB	Free Hanging (In-Line)	50 Ohms	Code L	1	Crimp	316, RG-174	Carmine, Red	-40 °C	105 ░C	Latch Lock
TAOGLAS FK1FLG	25	6000 MHz	Female Socket, Jack	Crimp	Fakra, SMB	Free Hanging (In-Line)	50 Ohms	Code L	1	Crimp	316, RG-174	Carmine, Red	-40 °C	105 ░C	Latch Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB, Fakra Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available
