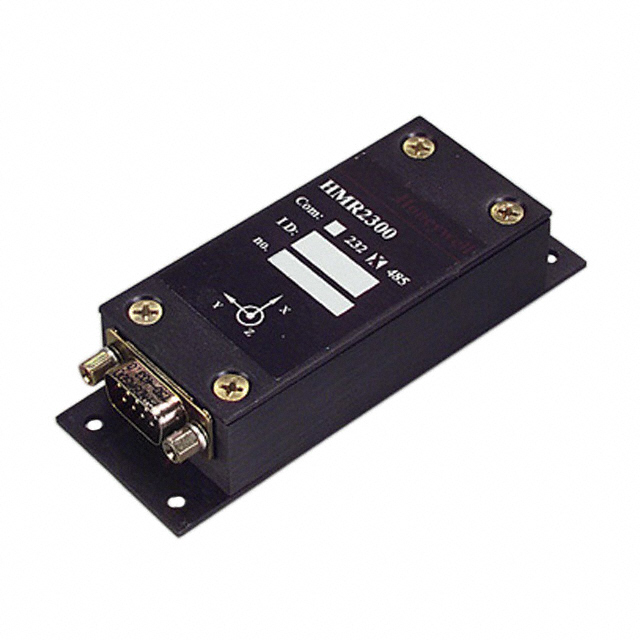

HMR2300-D21-485

Active

Honeywell Aerospace

MAGNETOMETER RS485 W/CASE

Search across all available documentation for this part.

Active

Honeywell Aerospace

MAGNETOMETER RS485 W/CASE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1426.64

General part information

±2 Gauss Compass X, Y, Z 67µGauss Module with Case

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	HMR2300-D21-485	HMR2300 Series

Axis [x]	X	X
Axis [y]	Y	Y
Axis [z]	Z	Z
Embedded	-	False
For Measuring [custom]	Direction of Magnetic Field	Direction of Magnetic Field
For Measuring [custom]	Strength	Strength
Interface	RS-485	RS-485, RS-232
Measuring Range [Max]	2 Gauss	2 Gauss
Measuring Range [Min]	-2 Gauss	-2 Gauss
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module with Case	Module with Case, Module (No Case)
Resolution	67 µGauss	67 µGauss
Sensing Range	-	-2 g
Sensing Range	-	2 g
Sensitivity	-	67 microgauss
Sensor Type	-	Magnetic, Magnetometer
Supplied Contents	-	Cable(s), Power Supply, Board(s)
Type	Digital Magnetometer	Digital Magnetometer
Utilized IC / Part	-	HMR2300
Voltage - Supply	-	15 V
Voltage - Supply	-	6.5 VDC

MAGNETOMETER RS485 W/CASE

Part	Type	Axis [z]	Axis [y]	Axis [x]	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Measuring Range [Max]	Measuring Range [Min]	For Measuring [custom]	For Measuring [custom]	Package / Case	Resolution	Supplied Contents	Sensitivity	Sensor Type	Sensing Range [Min]	Sensing Range [Max]	Utilized IC / Part	Voltage - Supply [Max]	Voltage - Supply [Min]
Honeywell Aerospace HMR2300-D21-485	Digital Magnetometer	Z	Y	X	85 °C	-40 °C	RS-485	2 Gauss	-2 Gauss	Direction of Magnetic Field	Strength	Module with Case	67 µGauss
Honeywell Aerospace HMR2300-D00-485	Digital Magnetometer	Z	Y	X	85 °C	-40 °C	RS-485	2 Gauss	-2 Gauss	Direction of Magnetic Field	Strength	Module (No Case)	67 µGauss
Honeywell Aerospace HMR2300-D21-232	Digital Magnetometer	Z	Y	X	85 °C	-40 °C	RS-232	2 Gauss	-2 Gauss	Direction of Magnetic Field	Strength	Module with Case	67 µGauss
Honeywell Aerospace HMR2300-D21-485-DEMO							RS-485							Board(s), Cable(s), Power Supply	67 microgauss	Magnetic, Magnetometer	-2 g	2 g	HMR2300	15 V	6.5 VDC
