MNI-4-12

Active

Essentra Access Solutions

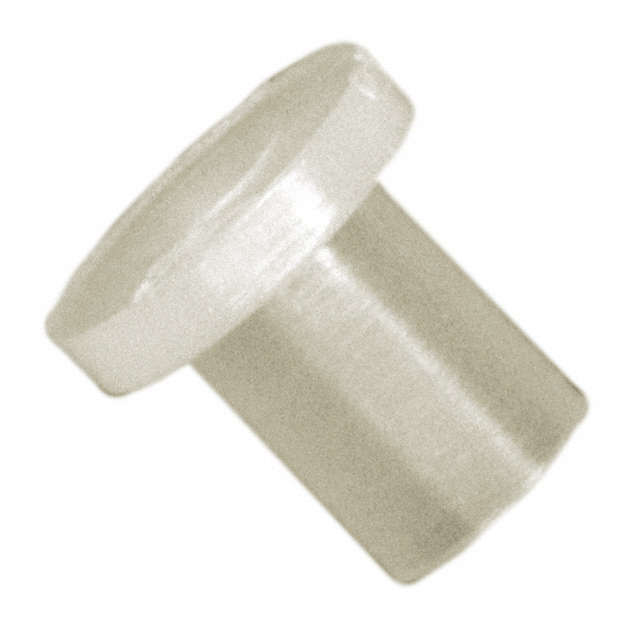

WASHER SHOULDER #4 NYLON

Search across all available documentation for this part.

Active

Essentra Access Solutions

WASHER SHOULDER #4 NYLON

Technical Specifications

Parameters and characteristics for this part

Part	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Material	Thread/Screw/Hole Size	Diameter - Shoulder [diameter]	Diameter - Shoulder [diameter]	Thickness - Overall	Thickness - Overall	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Length - Below Head	Length - Below Head	Length - Below Head	Thickness - Overall [z]	Thickness - Overall [z]	Length - Below Head	Length - Below Head [x]	Length - Below Head [x]
Essentra Access Solutions MNI-4-10	0.115 in	2.92 mm	Nylon	#4	0.145 in	3.68 mm	0.203 in	5.17 mm	5.97 mm	0.235 in	3.96 mm	0.15625 in	0.156 in
Essentra Access Solutions MNI-4-8	0.115 in	2.92 mm	Nylon	#4	0.145 in	3.68 mm			5.97 mm	0.235 in	3.18 mm	0.125 in	0.125 in	0.173 in	4.4 mm
Essentra Access Solutions MNI-4-12	0.115 in	2.92 mm	Nylon	#4	0.145 in	3.68 mm			5.97 mm	0.235 in	4.78 mm		0.188 "	0.234 in	5.94 mm	3/16
Essentra Access Solutions MNI-4-2	0.115 in	2.92 mm	Nylon	#4	0.145 in	3.68 mm	0.078 in	1.98 mm	5.97 mm	0.235 in	0.79 mm	0.03125 in	0.031 in
Essentra Access Solutions MNI-4-6	0.115 in	2.92 mm	Nylon	#4	0.145 in	3.68 mm	0.14 in	3.56 mm	5.97 mm	0.235 in							0.093 in	2.36 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

#4 Shoulder Washer 0.234" (5.94mm) Thick Nylon
