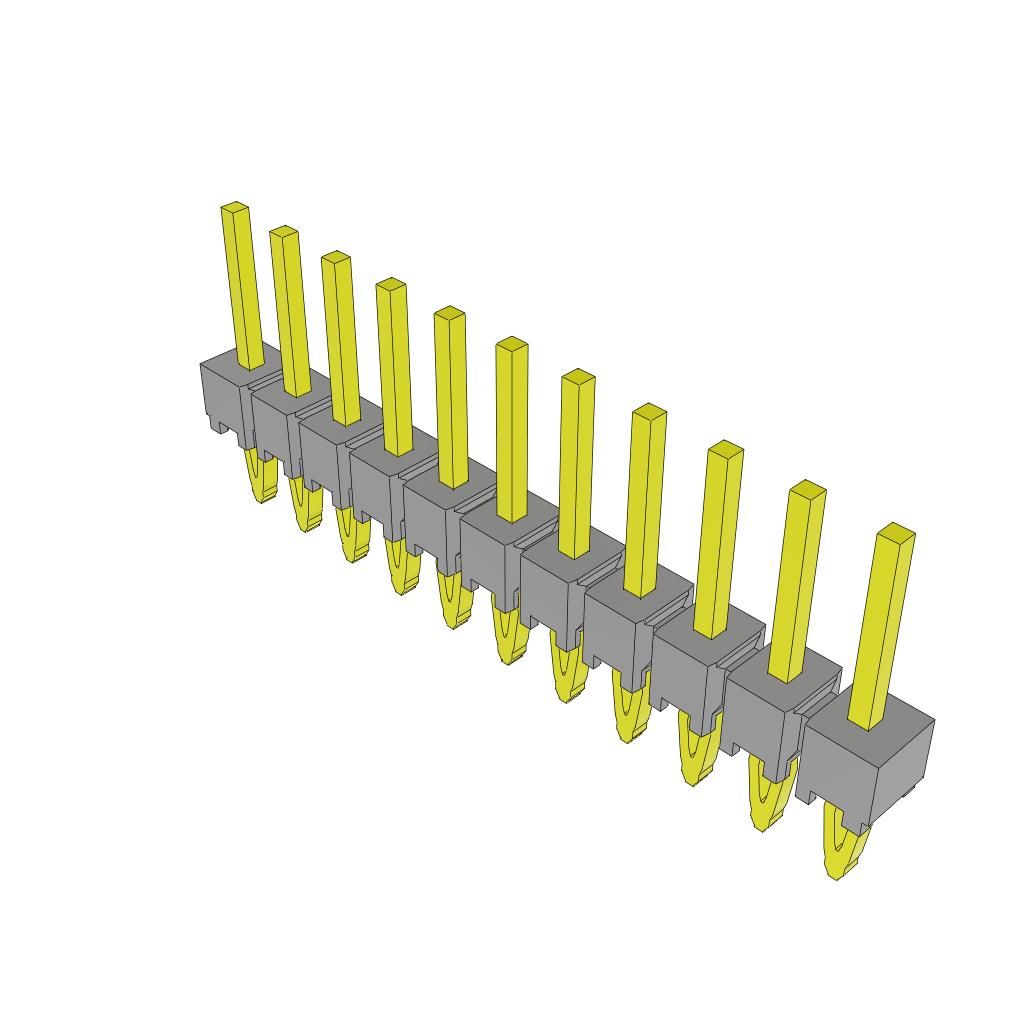

PHT-111-01-L-S

Active

Samtec Inc.

CONN HDR .100" 11POS

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR .100" 11POS

Technical Specifications

Parameters and characteristics for this part

Specification	PHT-111-01-L-S

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	4.8 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	11
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.452 "
Overall Contact Length	11.48 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder, Press-Fit

Part	Number of Positions	Insulation Height	Insulation Height	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Connector Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Length - Mating [x]	Contact Length - Mating	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Material Flammability Rating	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Type	Number of Rows	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Shrouding	Insulation Color	Contact Material	Mounting Type	Contact Shape
Samtec Inc. PHT-111-04-L-D	22 positions	0.4 in	10.16 mm	Press-Fit Solder	2.54 mm	0.1 in	Push-Pull	Header	Tin	0.1 in	2.54 mm	0.23 in	5.84 mm	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	4.8 A	UL94 V-0	Gold	-55 °C	125 °C	All	Male Pin	2	19.1 mm	0.752 in	0.122 "	3.1 mm	Unshrouded	Black	Phosphor Bronze	Through Hole	Square
Samtec Inc. PHT-111-01-L-S	11	0.1 in	2.54 mm	Press-Fit Solder			Push-Pull	Header	Tin	0.1 in	2.54 mm	0.23 in	5.84 mm	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	4.8 A	UL94 V-0	Gold	-55 °C	125 °C	All	Male Pin	1	11.48 mm	0.452 "	0.122 "	3.1 mm	Unshrouded	Black	Phosphor Bronze	Through Hole	Square
