1432-2

Active

Pomona Electronics

CONNECTOR ADAPTER, BANANA, 1 POSITIONS, JACK, PIN TIP, 1 POSITIONS, PLUG

1432-2

Active

Pomona Electronics

CONNECTOR ADAPTER, BANANA, 1 POSITIONS, JACK, PIN TIP, 1 POSITIONS, PLUG

Description Specifications Series Pricing CAD Documents

Description

General part information

1432 Series

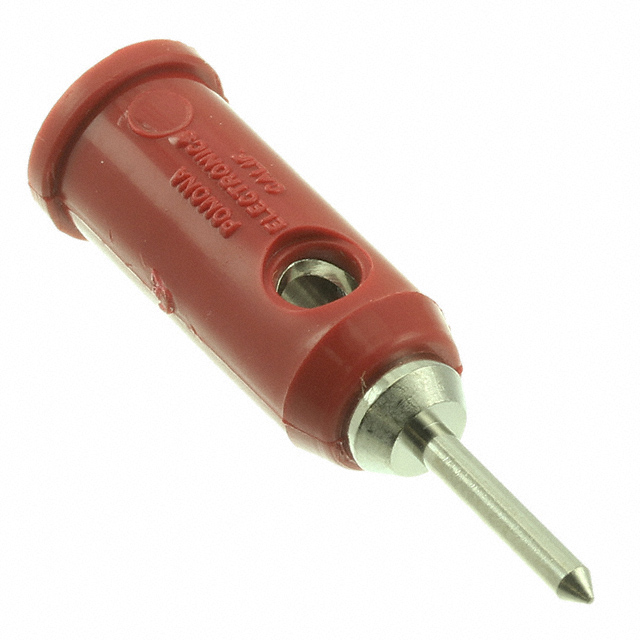

The 1432-2 is a Red Banana Jack to Pin Tip Plug permits banana plug cords to be used with equipment having pin tip jacks. Brass rod as per ASTM B16-85, temper H02 body and nickel plated as per QQ-N-290, Class 2, 200/300μinch finish. Polypropylene insulation.

Technical Specifications

Parameters and characteristics for this part

Specification	1432-2

Color	Red
Convert From (Adapter End)	Tip Plug
Convert To (Adapter End)	Banana Jack
Current Rating	5 A
Length - Overall	1.5 in
Operating Temperature	50 °C

1432 Series

Part	Current Rating	Length - Overall	Operating Temperature	Convert To (Adapter End)	Color	Convert From (Adapter End)
Pomona Electronics 1432-0	5 A	1.5 in	50 °C	Banana Jack	Black	Tip Plug
Pomona Electronics 1432-2	5 A	1.5 in	50 °C	Banana Jack	Red	Tip Plug
Pomona Electronics 1432-0#	5 A	1.5 in	50 °C	Banana Jack	Black	Tip Plug
Pomona Electronics 1432-2#	5 A	1.5 in	50 °C	Banana Jack	Red	Tip Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
