HW-02-20-F-D-790-SM-A - HW-02-20-F-D-790-SM-A

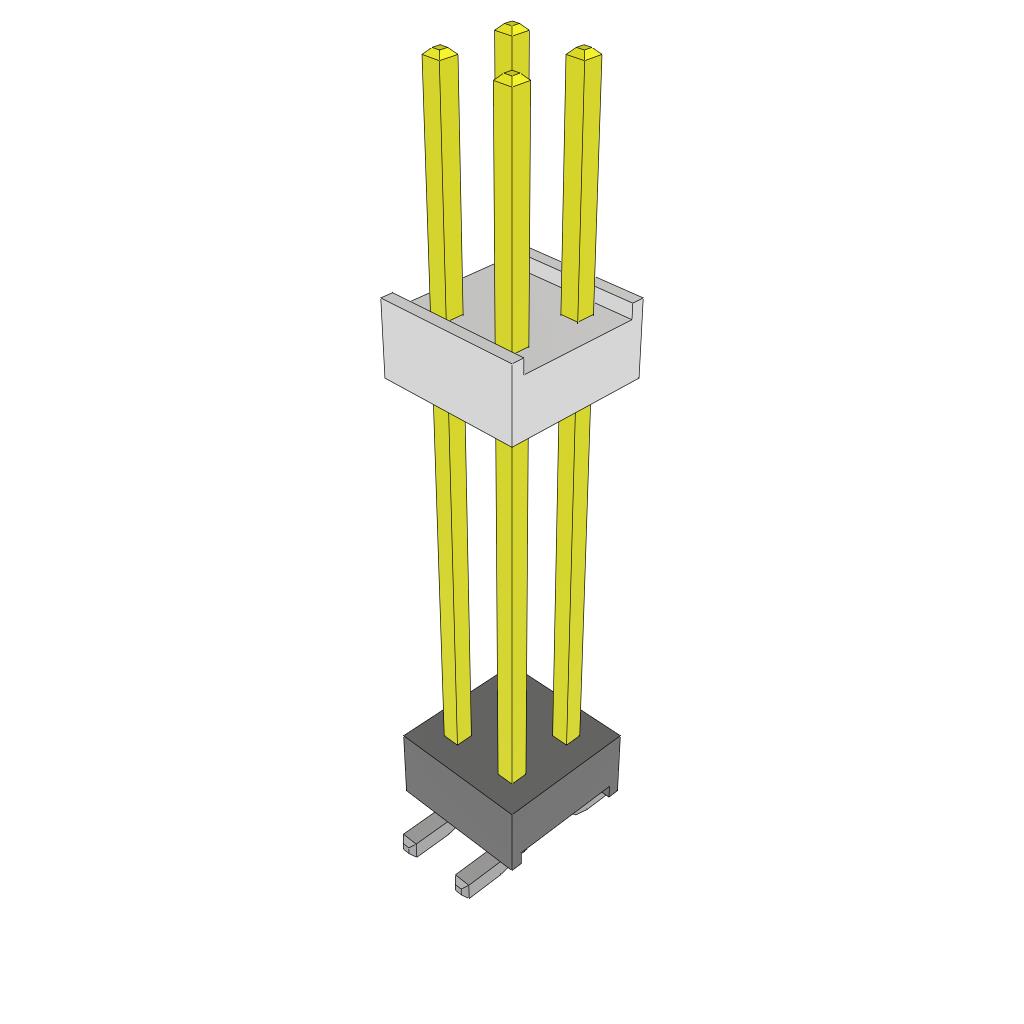

HW-02-20-F-D-790-SM-A

Active
Samtec Inc.

CONN HDR 4POS 0.1 STACK SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHW Series Other Related Documents 01HW Datasheet+1
HW-02-20-F-D-790-SM-A - HW-02-20-F-D-790-SM-A

HW-02-20-F-D-790-SM-A

Active
Samtec Inc.

CONN HDR 4POS 0.1 STACK SMD GOLD

Deep-Dive with AI

DocumentsHW Series Other Related Documents 01HW Datasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationHW-02-20-F-D-790-SM-A
ColorBlack
Contact Finish - Post (Mating)Gold
Contact Finish Thickness - Post (Mating)3 Áin
Contact Finish Thickness - Post (Mating)0.076 Ám
Length - Overall Pin [x]27.051 mm
Length - Overall Pin [x]1.065 in
Length - Post (Mating) [x]0.275 in
Length - Post (Mating) [x]6.985 mm
Length - Stack Height [x]20.066 mm
Length - Stack Height [x]0.79 in
Mounting TypeSurface Mount
Number of Positions4
Number of Rows2
Pitch [x]2.54 mm
Pitch [x]0.1 in
Row Spacing2.54 mm
Row Spacing [x]0.1 in
TerminationSolder

HW-02-20 Series

PartMounting TypeNumber of PositionsContact Finish - Post (Mating)Length - Stack Height [x]Length - Stack Height [x]Length - Overall Pin [x]Length - Overall Pin [x]ColorPitch [x]Pitch [x]Contact Finish Thickness - Post (Mating)Contact Finish Thickness - Post (Mating)Length - Post (Mating) [x]Length - Post (Mating) [x]TerminationNumber of RowsRow Spacing [x]Row SpacingLength - Stack Height [z]Length - Stack Height [z]Length - Tail [x]Length - Tail [x]
Samtec Inc.
HW-02-20-G-D-250-SM
Surface Mount
4
Gold
0.25 in
6.35 mm
27.051 mm
1.065 in
Black
2.54 mm
0.1 in
0.25 Ám
10 Áin
0.815 in
20.7 mm
Solder
2
0.1 in
2.54 mm
Samtec Inc.
HW-02-20-T-D-750-SM
Surface Mount
4
Tin
0.75 in
19.05 mm
27.051 mm
1.065 in
Black
2.54 mm
0.1 in
0.315 in
8 mm
Solder
2
0.1 in
2.54 mm
Samtec Inc.
HW-02-20-F-D-800-SM-A
Surface Mount
4
Gold
0.8 in
20.32 mm
27.051 mm
1.065 in
Black
2.54 mm
0.1 in
0.076 Ám
3 Áin
0.265 in
6.731 mm
Solder
2
0.1 in
2.54 mm
Samtec Inc.
HW-02-20-G-D-787-SM
Surface Mount
4
Gold
0.787 in
20 mm
27.051 mm
1.065 in
Black
2.54 mm
0.1 in
0.25 Ám
10 Áin
0.278 in
7.061 mm
Solder
2
0.1 in
2.54 mm
Samtec Inc.
HW-02-20-F-D-790-SM-A
Surface Mount
4
Gold
0.79 in
20.066 mm
27.051 mm
1.065 in
Black
2.54 mm
0.1 in
0.076 Ám
3 Áin
0.275 in
6.985 mm
Solder
2
0.1 in
2.54 mm
Samtec Inc.
HW-02-20-L-D-780-120
Through Hole
4
Gold
28.702 mm
1.13 in
Black
2.54 mm
0.1 in
0.25 Ám
10 Áin
0.23 in
5.842 mm
Solder
2
0.1 in
2.54 mm
0.78 in
19.812 mm
0.12 in
3.048 mm
Samtec Inc.
HW-02-20-LM-S-800-100
Through Hole
2
Gold
0.8 in
20.32 mm
28.702 mm
1.13 in
Black
2.54 mm
0.1 in
0.25 Ám
10 Áin
0.23 in
5.842 mm
Solder
1
0.1 "
2.54 mm
Samtec Inc.
HW-02-20-L-D-755-SM-A
Surface Mount
4
Gold
0.755 in
19.177 mm
27.051 mm
1.065 in
Black
2.54 mm
0.1 in
0.25 Ám
10 Áin
0.31 in
7.874 mm
Solder
2
0.1 in
2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.51

Description

General part information

HW-02-20 Series

4 Position Header Spacer Connector 0.100" (2.54mm) Gold Surface Mount
