6GK50041GM101AB2

Active

Siemens

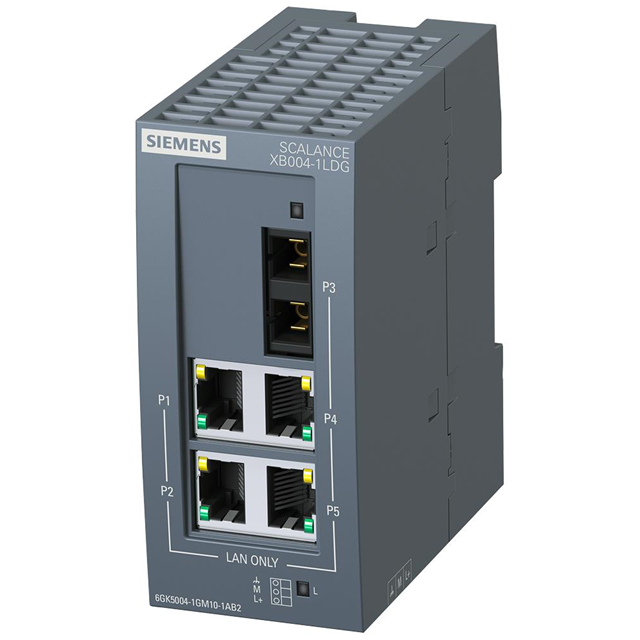

SCALANCE XB004-1LDG

Search across all available documentation for this part.

Active

Siemens

SCALANCE XB004-1LDG

Technical Specifications

Parameters and characteristics for this part

Part	Fiber Ports	Copper Ports	Configuration	Type	Mounting Type	Copper Type	Connector Type	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports
Siemens 6GK50041BF001AB2	1	4	Fixed	Switch - Unmanaged	DIN Rail Wall Mount	10/100	RJ45 SC	19.2 V	28.8 V	-10 °C	60 °C	5
Siemens 6GK50041GL101AB2	1	4	Fixed	Switch - Unmanaged	DIN Rail Wall Mount	10 100 1000	RJ45 SC	19.2 V	28.8 V	-10 °C	60 °C	5
Siemens 6GK50041GM101AB2	1	4	Fixed	Switch - Unmanaged	DIN Rail Wall Mount	10 100 1000	RJ45 SC	19.2 V	28.8 V	-10 °C	60 °C	5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Network Switch - Unmanaged 5 Ports IP20

Technical documentation and resources
