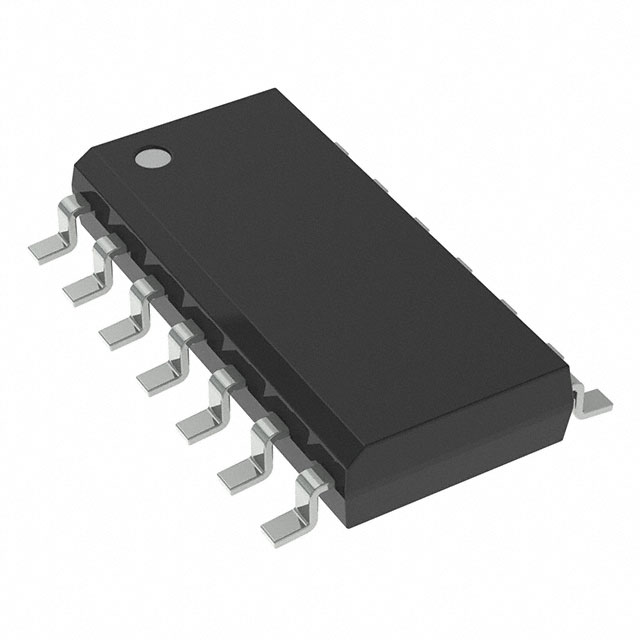

2ED21064S06JXUMA1
ActiveTHE 2ED21064S06J IS A 650 V, 0.7 A HIGH-SIDE AND LOW-SIDE GATE DRIVER WITH INTEGRATED BOOTSTRAP DIODE (DSO-14 PACKAGE)
Deep-Dive with AI
Search across all available documentation for this part.
2ED21064S06JXUMA1
ActiveTHE 2ED21064S06J IS A 650 V, 0.7 A HIGH-SIDE AND LOW-SIDE GATE DRIVER WITH INTEGRATED BOOTSTRAP DIODE (DSO-14 PACKAGE)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2ED21064S06JXUMA1 |
|---|---|
| Channel Type | Independent |
| Current - Peak Output (Source, Sink) [custom] | 700 mA |
| Current - Peak Output (Source, Sink) [custom] | 290 mA |
| Driven Configuration | High-Side and Low-Side |
| Gate Type | N-Channel MOSFET, IGBT |
| High Side Voltage - Max (Bootstrap) [Max] | 20 V |
| Logic Voltage - VIL, VIH [custom] | 1.1 V |
| Logic Voltage - VIL, VIH [custom] | 1.7 V |
| Mounting Type | Surface Mount |
| Number of Drivers | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 14-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Rise / Fall Time (Typ) [custom] | 35 ns |
| Rise / Fall Time (Typ) [custom] | 100 ns |
| Supplier Device Package | PG-DSO-14 |
| Voltage - Supply [Max] | 20 V |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.72 | |
| 10 | $ 1.55 | |||
| 25 | $ 1.46 | |||
| 100 | $ 1.25 | |||
| 250 | $ 1.17 | |||
| 500 | $ 1.02 | |||
| 1000 | $ 0.85 | |||
| Digi-Reel® | 1 | $ 1.72 | ||
| 10 | $ 1.55 | |||
| 25 | $ 1.46 | |||
| 100 | $ 1.25 | |||
| 250 | $ 1.17 | |||
| 500 | $ 1.02 | |||
| 1000 | $ 0.85 | |||
| Tape & Reel (TR) | 2500 | $ 0.79 | ||
| 5000 | $ 0.76 | |||
| 12500 | $ 0.73 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.09 | |
| 10 | $ 0.99 | |||
| 25 | $ 0.93 | |||
| 50 | $ 0.87 | |||
| 100 | $ 0.81 | |||
Description
General part information
2ED21064 Series
650 Vhigh and low sidehigh speed powerMOSFETandIGBTgate driver with typical 0.29 source current, and 0.7 sink current in DSO-14 package. The smaller DSO-8 package version is also available:2ED2106S06F. Based onInfineon’s SOI-technology, having excellent ruggedness and noise immunity against negative transient voltages on VS pin. No parasitic thyristor structures present in the device, hence no parasitic latch up at all temperature and voltage conditions.
