E20911300000G

Active

AMPHENOL ANYTEK

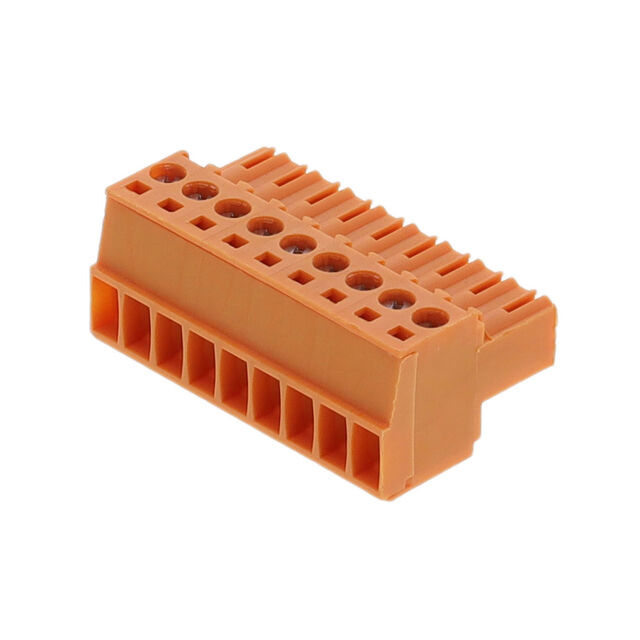

TERM BLOCK PLUG 9POS STR 3.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

E20911300000G

Active

AMPHENOL ANYTEK

TERM BLOCK PLUG 9POS STR 3.5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.64
		10	$ 2.00
		25	$ 1.85
		50	$ 1.66
		100	$ 1.62
		250	$ 1.42
		500	$ 1.30
		2100	$ 1.10

Description

General part information

E20 Series

9 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	E20911300000G	E20 Series

Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Mating Finish	Tin	Tin
Current - UL	10 A	10 A
Housing Material	Thermoplastic	Thermoplastic
Insulation Height	13 mm	13 mm
Insulation Height	0.512 in	0.512 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	9	6 - 9
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	3.5 mm	3.5 mm
Pitch [x]	0.138 in	0.138 in
Positions Per Level	9	3 - 9
Screw Size	M2	M2
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Torque - Screw	0.2 Nm	0.2 Nm
Torque - Screw	1.7 Lb-In	1.7 Lb-In
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	28 AWG	28 AWG
Wire Gauge or Range - AWG [Min]	14 AWG	14 AWG
Wire Strip Length [Max]	7 mm	7 mm
Wire Strip Length [Min]	6 mm	6 mm

E20 Series

TERM BLOCK PLUG 7POS STR 3.5MM

Part	Positions Per Level	Pitch [x]	Pitch [x]	Screw Size	Voltage - UL	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Mating Finish	Wire Strip Length [Max]	Wire Strip Length [Min]	Material Flammability Rating	Number of Levels	Termination Style	Current - UL	Housing Material	Type	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Torque - Screw	Torque - Screw	Mounting Type	Number of Positions	Contact Material
AMPHENOL ANYTEK E20711300000G	7	3.5 mm	0.138 in	M2	300 V	14 AWG	28 AWG	Tin	7 mm	6 mm	UL94 V-0	1	Screw - Rising Cage Clamp	10 A	Thermoplastic	Plug, Female Sockets	13 mm	0.512 in	-40 °C	115 °C	0.2 Nm	1.7 Lb-In	Free Hanging (In-Line)	7	Phosphor Bronze
AMPHENOL ANYTEK E20811300000G	8	3.5 mm	0.138 in	M2	300 V	14 AWG	28 AWG	Tin	7 mm	6 mm	UL94 V-0	1	Screw - Rising Cage Clamp	10 A	Thermoplastic	Plug, Female Sockets	13 mm	0.512 in	-40 °C	115 °C	0.2 Nm	1.7 Lb-In	Free Hanging (In-Line)	8	Phosphor Bronze
AMPHENOL ANYTEK E20611300000G	6	3.5 mm	0.138 in	M2	300 V	14 AWG	28 AWG	Tin	7 mm	6 mm	UL94 V-0	1	Screw - Rising Cage Clamp	10 A	Thermoplastic	Plug, Female Sockets	13 mm	0.512 in	-40 °C	115 °C	0.2 Nm	1.7 Lb-In	Free Hanging (In-Line)	6	Phosphor Bronze
AMPHENOL ANYTEK E20911300000G	9	3.5 mm	0.138 in	M2	300 V	14 AWG	28 AWG	Tin	7 mm	6 mm	UL94 V-0	1	Screw - Rising Cage Clamp	10 A	Thermoplastic	Plug, Female Sockets	13 mm	0.512 in	-40 °C	115 °C	0.2 Nm	1.7 Lb-In	Free Hanging (In-Line)	9	Phosphor Bronze
AMPHENOL ANYTEK E20311300000G	3	3.5 mm	0.138 in	M2	300 V	14 AWG	28 AWG	Tin	7 mm	6 mm	UL94 V-0	1	Screw - Rising Cage Clamp	10 A	Thermoplastic	Plug, Female Sockets	13 mm	0.512 in	-40 °C	115 °C	0.2 Nm	1.7 Lb-In	Free Hanging (In-Line)		Phosphor Bronze
