FZ2000R33HE4BOSA1
ActiveIGBT MODULE, SINGLE SWITCH, 2 KA, 2.45 V, 150 °C, MODULE
Deep-Dive with AI
Search across all available documentation for this part.
FZ2000R33HE4BOSA1
ActiveIGBT MODULE, SINGLE SWITCH, 2 KA, 2.45 V, 150 °C, MODULE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FZ2000R33HE4BOSA1 |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 2000 A |
| Current - Collector Cutoff (Max) [Max] | 5 mA |
| IGBT Type | Trench Field Stop |
| Input | Standard |
| Input Capacitance (Cies) @ Vce | 280 nF |
| Mounting Type | Chassis Mount |
| NTC Thermistor | False |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Max [Max] | 4.2 mW |
| Supplier Device Package | AG-IHVB190-3 |
| Vce(on) (Max) @ Vge, Ic | 2.2 V |
| Voltage - Collector Emitter Breakdown (Max) | 3300 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
FZ2000 Series

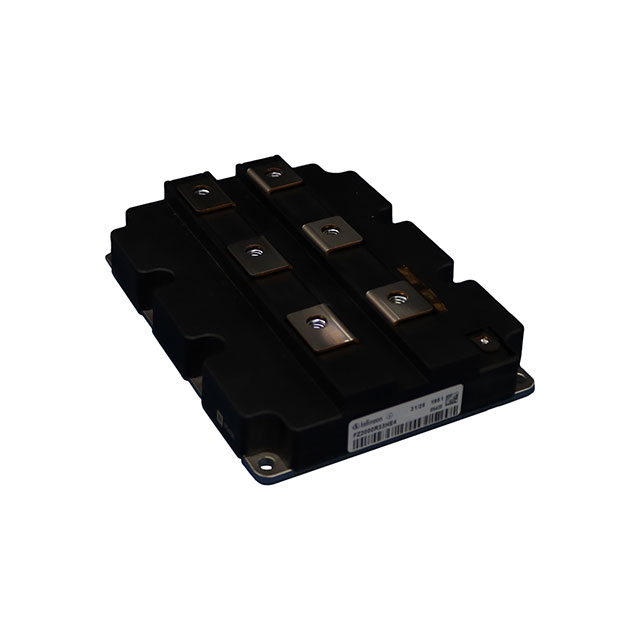

FZ2000R33HE4BOSA1 is a IHM-B module with Trench/Fieldstop IGBT4 and emitter controlled 4 diode. Potential applications includes motor drives, traction drives, UPS systems, medium-voltage converters, high-power converters, active frontend (energy recovery). Qualified for industrial applications according to the relevant tests of IEC 60747, 60749 and 60068.
