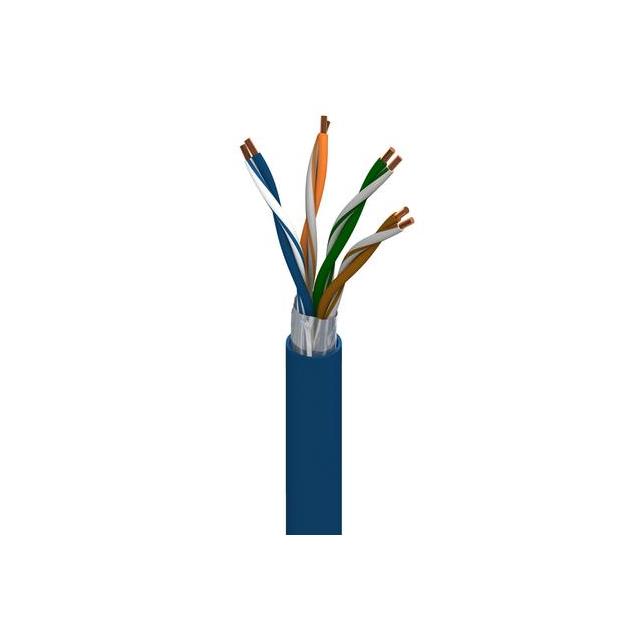

7936A 0101000

Active

Belden Inc.

WIRE; F/UTP; 4X2X24AWG; INDUSTRIAL ETHERNET,OUTDOOR; 5E; WIRE; CU

Search across all available documentation for this part.

Active

Belden Inc.

WIRE; F/UTP; 4X2X24AWG; INDUSTRIAL ETHERNET,OUTDOOR; 5E; WIRE; CU

Technical Specifications

Parameters and characteristics for this part

Specification	7936A 0101000

Cable Type	Multi-Pair, Cat5e
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Drain Wire, UV Resistant
Jacket (Insulation) Diameter [diameter]	6.73 mm
Jacket (Insulation) Diameter [diameter]	0.265 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-10 °C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Industrial, Network
Voltage	300 V
Wire Gauge	24 AWG

Part	Number of Conductors	Conductor Material	Conductor Strand	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Usage	Conductor Insulation	Voltage	Cable Type	Jacket Color	Shield Coverage	Shield Type	Features	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]
Belden Inc. 7936A 0101000	8	Copper Bare	Solid	1000 ft	304.8 m	-10 °C	75 ░C	24 AWG	Industrial Network	Polyolefin (PO)	300 V	Multi-Pair Cat5e	Black	100 %	Foil	Drain Wire UV Resistant	Aluminum	6.73 mm	0.265 in
Belden Inc. 7936A 0102000	8	Copper Bare	Solid			-10 °C	75 ░C	24 AWG	Industrial Network	Polyolefin (PO)	300 V	Multi-Pair Cat5e	Black	100 %	Foil	Drain Wire UV Resistant	Aluminum	6.73 mm	0.265 in	609.6 m	2000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Black 24 AWG Foil 1000.0' (304.8m)
