M80-5702005 - M80-5701005

M80-5702005

Active
Harwin Inc.

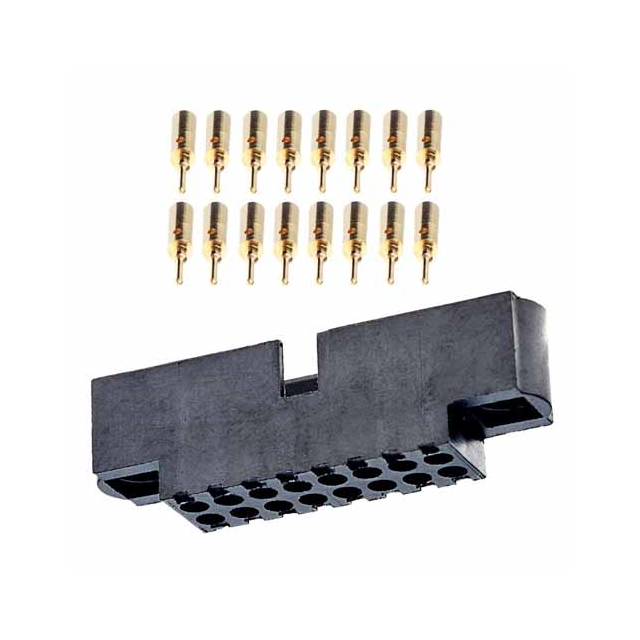

10+10 POS. MALE DIL 22AWG CABLE CONN. KIT, NO JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80, M83 Series Spec SheetDatasheet+2
M80-5702005 - M80-5701005

M80-5702005

Active
Harwin Inc.

10+10 POS. MALE DIL 22AWG CABLE CONN. KIT, NO JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80, M83 Series Spec SheetDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationM80-5702005
Cable TerminationCrimp
ColorBlack
Connector TypeHeader
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
Contact TypeMale Pin
Mounting TypeFree Hanging (In-Line)
Number of Positions20
Number of Rows2
Pitch [x]0.079 in
Pitch [x]2 mm
Row Spacing2 mm
Row Spacing0.079 in
Wire Gauge22 AWG
Wire TypeDiscrete

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 12.09
10$ 10.72
25$ 10.31
50$ 9.90
100$ 9.35
250$ 8.52
500$ 7.97
1000$ 7.31
NewarkEach 50$ 10.78
100$ 10.51
250$ 9.42
500$ 8.88
1000$ 7.79
2500$ 7.41

Description

General part information

M80-570 Series

20 Position Rectangular Header Connector Crimp Gold 22 AWG
