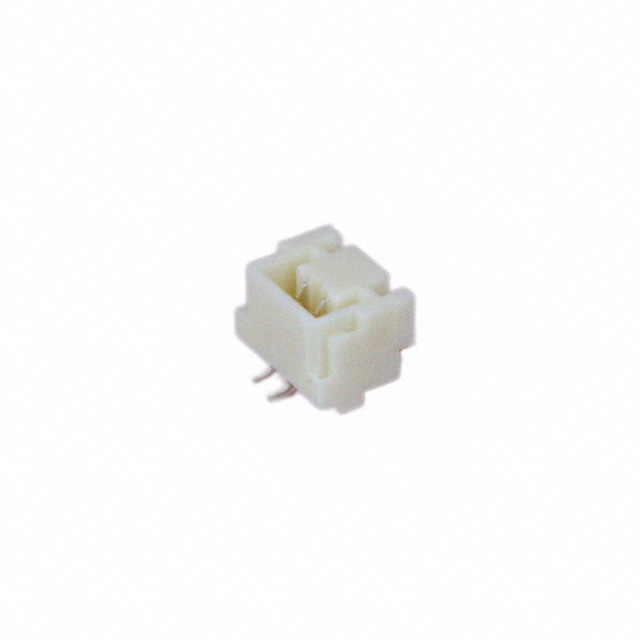

BM02B-GVHS-TB(LF)(SN)
ActiveJST Sales America Inc.
CONN HEADER SMD 2POS 1.25MM
Deep-Dive with AI
Search across all available documentation for this part.
BM02B-GVHS-TB(LF)(SN)
ActiveJST Sales America Inc.
CONN HEADER SMD 2POS 1.25MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BM02B-GVHS-TB(LF)(SN) |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Contact Shape | Rectangular |
| Contact Type | Outer Shroud Contact |
| Fastening Type | Latch Holder |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 4.05 mm |
| Insulation Height | 0.159 in |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Mated Stacking Heights | 8.8 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.38 | |
| Digi-Reel® | 1 | $ 0.38 | ||
| Tape & Reel (TR) | 2500 | $ 0.17 | ||
Description
General part information
BM02B-GV Series
Connector Header Surface Mount 2 position 0.049" (1.25mm)
