ACDA02-41SGWA-F01

Active

Kingbright

DISPLAY 7SEG 0.2" DBL GRN 20SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ACDA02-41SGWA-F01

Active

Kingbright

DISPLAY 7SEG 0.2" DBL GRN 20SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.90
		10	$ 3.64
		100	$ 2.90
	Digi-Reel®	1	$ 4.90
		10	$ 3.64
		100	$ 2.90
	Tape & Reel (TR)	300	$ 2.67
		600	$ 2.55
		900	$ 2.49
		1500	$ 2.42
		2100	$ 2.38
		3000	$ 2.34

Description

General part information

ACDA02 Series

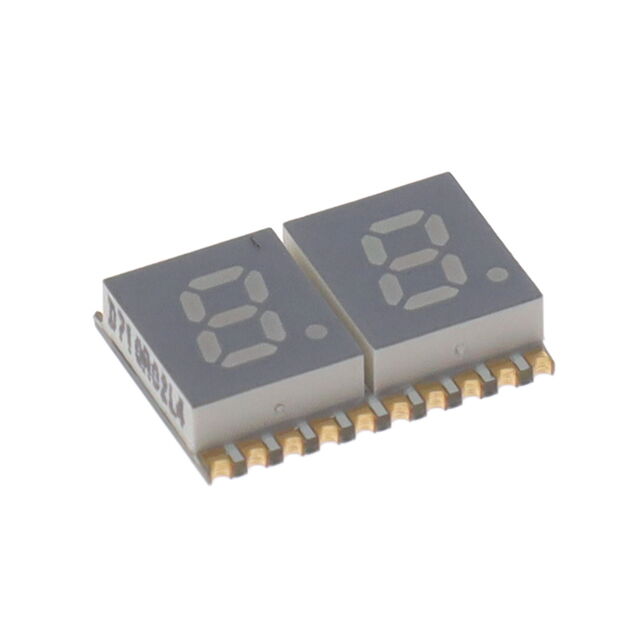

Display Modules - LED Character and Numeric Green 7-Segment 2 Character Common Anode 2.2V 20mA 0.315" H x 0.555" W x 0.118" D (8.00mm x 14.10mm x 3.00mm) 20-SMD, No Lead

Documents

Technical documentation and resources

Specification	ACDA02-41SGWA-F01	ACDA02 Series

Color	Green	Yellow, Green, Red
Common Pin	Common Anode	Common Anode
Current - Test	20 mA	10 - 20 mA
Digit/Alpha Size	5.08 mm	5.08 mm
Digit/Alpha Size	0.2 in	0.2 in
Display Type	7-Segment	7-Segment
Millicandela Rating	3.9 mcd	3.2 - 50 mcd
Number of Characters	2	2
Package / Case	20-SMD, No Lead	20-SMD, No Lead
Power Dissipation (Max) [Max]	62.5 mW	62.5 - 75 mw
Size / Dimension [x]	0.315 "	0.315 - 0.394 "
Size / Dimension [x]	8 mm	8 - 10 mm
Size / Dimension [y]	0.555 "	0.555 "
Size / Dimension [y]	14.1 mm	14.1 mm
Size / Dimension [z]	0.118 "	0.118 "
Size / Dimension [z]	3 mm	3 mm
Voltage - Forward (Vf) (Typ)	2.2 V	1.95 - 2.5 V
Wavelength - Peak	565 nm	565 - 650 nm

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Display Type	Voltage - Forward (Vf) (Typ)	Current - Test	Number of Characters	Package / Case	Color	Power Dissipation (Max) [Max]	Common Pin	Digit/Alpha Size	Digit/Alpha Size	Wavelength - Peak	Millicandela Rating
Kingbright ACDA02-41SYKWA-F01	0.315 "	0.118 "	3 mm	0.555 "	8 mm	14.1 mm	7-Segment	2 V	20 mA	2	20-SMD, No Lead	Yellow	75 mw	Common Anode	5.08 mm	0.2 in	590 nm	50 mcd
Kingbright ACDA02-41SGWA-F01	0.315 "	0.118 "	3 mm	0.555 "	8 mm	14.1 mm	7-Segment	2.2 V	20 mA	2	20-SMD, No Lead	Green	62.5 mW	Common Anode	5.08 mm	0.2 in	565 nm	3.9 mcd
Kingbright ACDA02-41EWA-F01	0.394 "	0.118 "	3 mm	0.555 "	10 mm	14.1 mm	7-Segment	2.5 V	10 mA	2	20-SMD, No Lead	Red	75 mw	Common Anode	5.08 mm	0.2 in	627 nm	3.2 mcd
Kingbright ACDA02-41CGKWA-F01	0.315 "	0.118 "	3 mm	0.555 "	8 mm	14.1 mm	7-Segment	2.1 V	20 mA	2	20-SMD, No Lead	Green	75 mw	Common Anode	5.08 mm	0.2 in		12 mcd
Kingbright ACDA02-41SURKWA-F01	0.315 "	0.118 "	3 mm	0.555 "	8 mm	14.1 mm	7-Segment	1.95 V	20 mA	2	20-SMD, No Lead	Red	75 mw	Common Anode	5.08 mm	0.2 in	650 nm	30 mcd
Kingbright ACDA02-41SEKWA-F01	0.315 "	0.118 "	3 mm	0.555 "	8 mm	14.1 mm	7-Segment	2.1 V	20 mA	2	20-SMD, No Lead		75 mw	Common Anode	5.08 mm	0.2 in	610 nm	37 mcd
