AV3602649
ActivePanasonic Electric Works

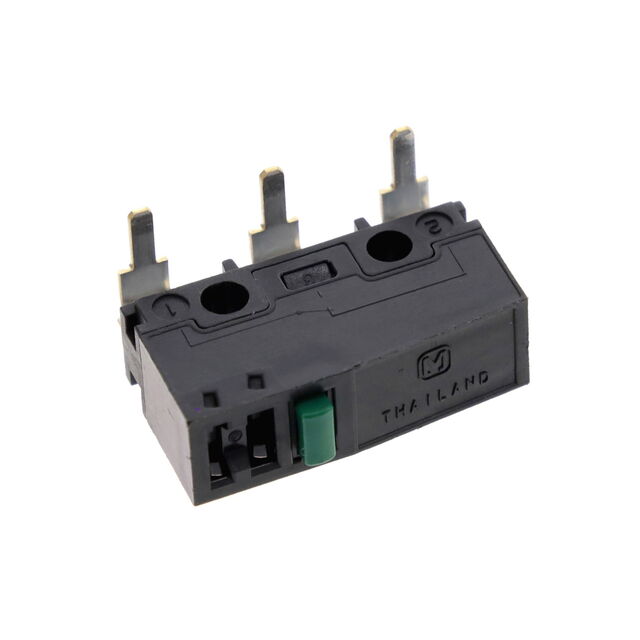

SWITCH SNAP ACT SPDT 0.1A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsHow to Read Date Codes
AV3602649
ActivePanasonic Electric Works
SWITCH SNAP ACT SPDT 0.1A 125V
Deep-Dive with AI
DocumentsHow to Read Date Codes
Technical Specifications
Parameters and characteristics for this part
| Specification | AV3602649 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 100 mA |
| Differential Travel | 0.1 mm |
| Differential Travel | 0.004 in |
| Electrical Life | 200000 Cycles |
| Features | Actuator Mounted Right Side |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Through Hole, Right Angle |
| Operating Force | 50 gf |
| Operating Position | 8.4 mm |
| Operating Position | 0.33 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 0.4 mm |
| Overtravel | 0.015 " |
| Pretravel | 0.024 in |
| Pretravel | 0.6 mm |
| Release Force | 7.546 gf |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
