Q-280740013006i

Active

Amphenol Custom Cable

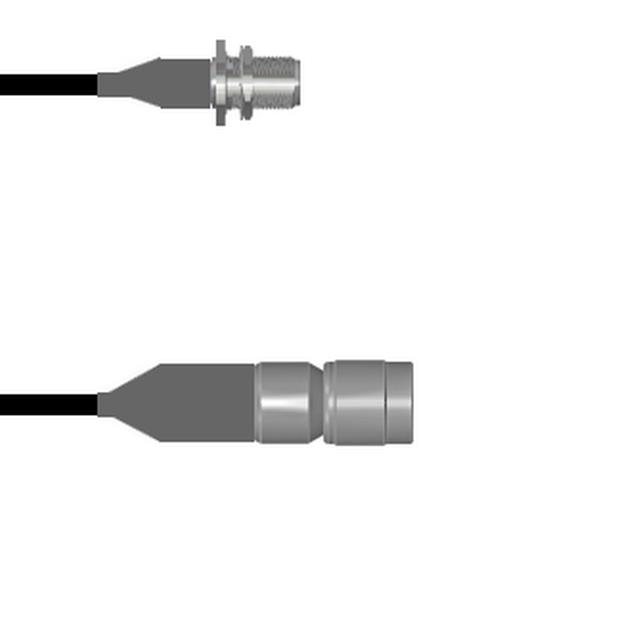

CBL ASSY NTYPE-TNC JACK-PLUG 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-280740013006i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JACK-PLUG 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-280740013006i

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	LMR 400
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms

Q-280740 Series

Part	1st Connector	Length	Length	Length	Color	Overall Impedance	Frequency - Max [Max]	Cable Type	1st Connector Mounting Type	1st Connector Mounting Feature	Features	1st Contact Gender	2nd Connector Mounting Type	2nd Connector	2nd Contact Gender	Length [x]	Length [x]
Amphenol Custom Cable Q-2807400132.5M	N-Type Jack	8.2 '	98.4 in	2.5 m	Black	50 Ohms	6000 MHz	LMR 400	Panel Mount	Bulkhead - Front Side Nut	Shielded	Female	Free Hanging (In-Line)	TNC Plug	Male
Amphenol Custom Cable Q-280740013003i	N-Type Jack		3 in	76.2 mm	Black	50 Ohms	6000 MHz	LMR 400	Panel Mount	Bulkhead - Front Side Nut	Shielded	Female	Free Hanging (In-Line)	TNC Plug	Male
Amphenol Custom Cable Q-280740013003M	N-Type Jack	9.8 '	118.1 in	3 m	Black	50 Ohms	6000 MHz	LMR 400	Panel Mount	Bulkhead - Front Side Nut	Shielded	Female	Free Hanging (In-Line)	TNC Plug	Male
Amphenol Custom Cable Q-280740013072i	N-Type Jack	6 ft	72 in	1.8 m	Black	50 Ohms	6000 MHz	LMR 400	Panel Mount	Bulkhead - Front Side Nut	Shielded	Female	Free Hanging (In-Line)	TNC Plug	Male
Amphenol Custom Cable Q-280740013048i	N-Type Jack	4 ft	48 in	1200 mm	Black	50 Ohms	6000 MHz	LMR 400	Panel Mount	Bulkhead - Front Side Nut	Shielded	Female	Free Hanging (In-Line)	TNC Plug	Male
Amphenol Custom Cable Q-280740013084i	N-Type Jack	7 ft	84 in	2.1 m	Black	50 Ohms	6000 MHz	LMR 400	Panel Mount	Bulkhead - Front Side Nut	Shielded	Female	Free Hanging (In-Line)	TNC Plug	Male
Amphenol Custom Cable Q-280740013.75M	N-Type Jack		29.53 "	750 mm	Black	50 Ohms	6000 MHz	LMR 400	Panel Mount	Bulkhead - Front Side Nut	Shielded	Female	Free Hanging (In-Line)	TNC Plug	Male
Amphenol Custom Cable Q-280740013108i	N-Type Jack	9 ft	108 in	2.7 m	Black	50 Ohms	6000 MHz	LMR 400	Panel Mount	Bulkhead - Front Side Nut	Shielded	Female	Free Hanging (In-Line)	TNC Plug	Male
Amphenol Custom Cable Q-280740013018i	N-Type Jack				Black	50 Ohms	6000 MHz	LMR 400	Panel Mount	Bulkhead - Front Side Nut	Shielded	Female	Free Hanging (In-Line)	TNC Plug	Male	457.2 mm	457.2 mm
Amphenol Custom Cable Q-280740013006i	N-Type Jack		6 in	152.4 mm	Black	50 Ohms	6000 MHz	LMR 400	Panel Mount	Bulkhead - Front Side Nut	Shielded	Female	Free Hanging (In-Line)	TNC Plug	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 140.38
		25	$ 137.75
		50	$ 135.13
		100	$ 132.51
		250	$ 129.88

Description

General part information

Q-280740 Series

Cable Assembly Coaxial N-Type to TNC LMR 400 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
