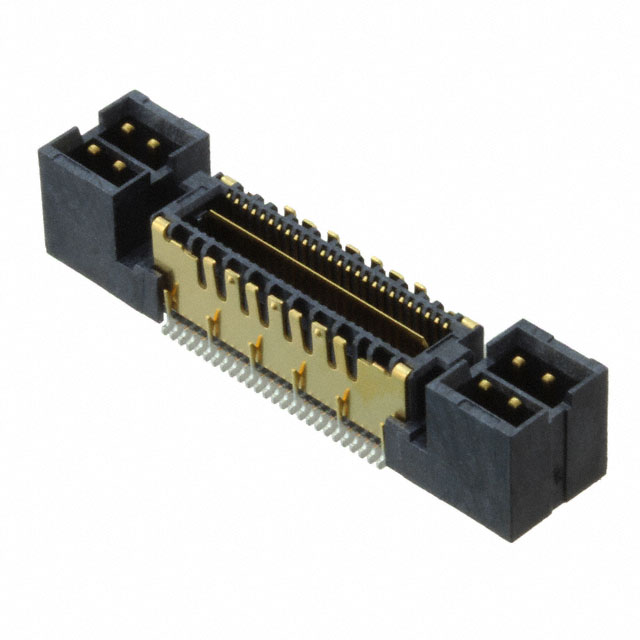

QMSS-026-01-L-D-EM2-PC4

Active

Samtec Inc.

CONN HDR 52POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsQFSS Series Other Related Documents 03 QMS Series Other Related Documents 01 +2

QMSS-026-01-L-D-EM2-PC4

Active

Samtec Inc.

CONN HDR 52POS SMD GOLD

Deep-Dive with AI

DocumentsQFSS Series Other Related Documents 03 QMS Series Other Related Documents 01 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QMSS-026-01-L-D-EM2-PC4

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Power Pins (4), Shielded, Board Guide, Ground Bus (Plane)
Height Above Board	0.265 in
Height Above Board	6.73 mm
Mated Stacking Heights	11 mm
Mounting Type	Surface Mount
Number of Positions	52
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

QMSS-026 Series

Board to Board & Mezzanine Connectors 0.635 mm Q2 Shielded Ground Plane Terminal Strip

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Height Above Board	Height Above Board	Mounting Type	Features	Contact Finish	Number of Rows	Mated Stacking Heights	Pitch [x]	Pitch [x]	Connector Type
Samtec Inc. QMSS-026-01-L-D-EM2-PC4	10 Áin	0.25 Ám	52	0.265 in	6.73 mm	Surface Mount	Board Guide Ground Bus (Plane) Power Pins (4) Shielded	Gold	2	11 mm	0.64 mm	0.025 in	Header Outer Shroud Contacts
Samtec Inc. QMSS-026-06.75-L-D-A	10 Áin	0.25 Ám	52	0.25 in	6.35 mm	Surface Mount	Board Guide Ground Bus (Plane) Shielded	Gold	2	11 mm	0.64 mm	0.025 in	Header Outer Shroud Contacts
Samtec Inc. QMSS-026-06.75-H-D-PC4	30 Áin	0.76 Ám	52	0.25 in	6.35 mm	Surface Mount	Board Guide Ground Bus (Plane) Power Pins (8) Shielded	Gold	2	11 mm	0.64 mm	0.025 in	Header Outer Shroud Contacts
Samtec Inc. QMSS-026-06.75-H-D-A	30 Áin	0.76 Ám	52	0.25 in	6.35 mm	Surface Mount	Board Guide Ground Bus (Plane) Shielded	Gold	2	11 mm	0.64 mm	0.025 in	Header Outer Shroud Contacts
Samtec Inc. QMSS-026-06.75-L-D-A-GP-K-TR	10 Áin	0.25 Ám	52	0.265 in	6.73 mm	Surface Mount	Board Guide Ground Bus (Plane) Pick and Place Shielded	Gold	2	11 mm	0.64 mm	0.025 in	Header Outer Shroud Contacts
Samtec Inc. QMSS-026-06.75-L-D-PC8	10 Áin	0.25 Ám	52	0.265 in	6.73 mm	Surface Mount	Board Guide Ground Bus (Plane) Power Pins (8) Shielded	Gold	2	11 mm	0.64 mm	0.025 in	Header Outer Shroud Contacts
Samtec Inc. QMSS-026-06.75-L-D-A-TR	10 Áin	0.25 Ám	52	0.265 in	6.73 mm	Surface Mount	Board Guide Ground Bus (Plane) Shielded	Gold	2	11 mm	0.64 mm	0.025 in	Header Outer Shroud Contacts
Samtec Inc. QMSS-026-01-H-D-EM2-PC4	30 Áin	0.76 Ám	52	0.265 in	6.73 mm	Surface Mount	Board Guide Ground Bus (Plane) Power Pins (4) Shielded	Gold	2	11 mm	0.64 mm	0.025 in	Header Outer Shroud Contacts
Samtec Inc. QMSS-026-06.75-L-D-PT4	10 Áin	0.25 Ám	52	0.265 in	6.73 mm	Surface Mount	Board Guide Ground Bus (Plane) Power Pins (4) Shielded	Gold	2	11 mm	0.64 mm	0.025 in	Header Outer Shroud Contacts

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 20.11
		10	$ 19.04
		25	$ 18.32
		50	$ 17.88
		100	$ 16.71

Description

General part information

QMSS-026 Series

Board to Board & Mezzanine Connectors 0.635 mm Q2 Shielded Ground Plane Terminal Strip
