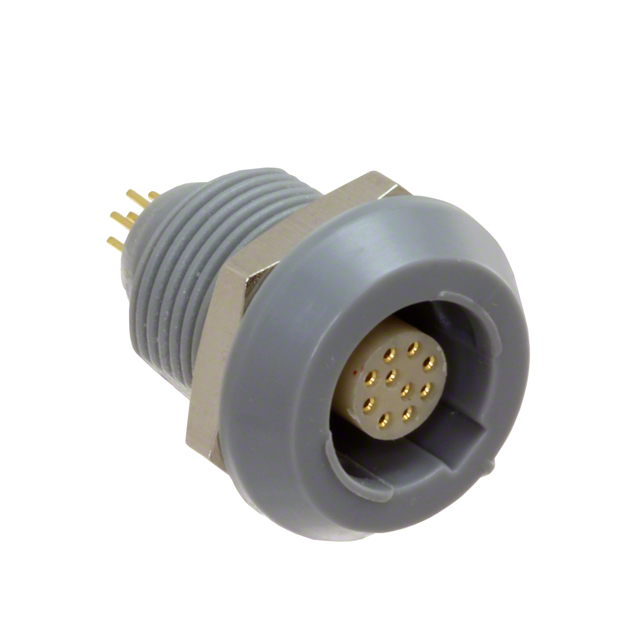

Specification	8P1P010210GRF01

Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	7 µin
Contact Material	Copper Alloy
Current Rating	3 A
Fastening Type	Push-Pull
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyphenylene Sulfide, PPS
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount, Through Hole
Number of Positions	10
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-20 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polycarbonate (PC), Polyacrylonitrile Butadiene Styrene (ABS)
Shielding	Unshielded
Termination	Solder
Voltage Rating	333 V

8P1P010 Series

Part	Termination	Orientation	Contact Finish - Mating	Contact Material	Current Rating	Ingress Protection Description	Ingress Protection IP Rating	Color	Number of Positions	Connector Type	Voltage Rating	Shielding	Cable Opening (Min)	Cable Opening (Max)	Fastening Type	Mounting Type	Contact Finish Thickness - Mating	Primary Material	Insert Material	Operating Temperature (Max)	Operating Temperature (Min)	Shell Material	Mounting Feature	Backshell Material, Plating	Features
NorComp Inc. 8P1P01017NNL521	Solder Cup	Keyed	Gold	Copper Alloy	3 A	Dust Protected	IP50	Black Gray	10	Male Pins Plug	333 V	Unshielded	0.157 in	0.197 in	Push-Pull	Free Hanging (In-Line)	7 µin	Plastic	Polyphenylene Sulfide PPS	120 °C	-20 °C	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)
NorComp Inc. 8P1P01017NNL421	Solder Cup	Keyed	Gold	Copper Alloy	3 A	Dust Protected	IP50	Black Gray	10	Male Pins Plug	333 V	Unshielded	0.087 in	0.157 in	Push-Pull	Free Hanging (In-Line)	7 µin	Plastic	Polyphenylene Sulfide PPS	120 °C	-20 °C	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)
NorComp Inc. 8P1P010210GRBR1	Solder	Keyed	Gold	Copper Alloy	3 A	Dust Protected	IP50	Gray	10	Female Sockets Receptacle	333 V	Unshielded			Push-Pull	Panel Mount Right Angle Through Hole	7 µin	Plastic	Polyphenylene Sulfide PPS	120 °C	-20 °C	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Bulkhead Front Side Nut
NorComp Inc. 8P1P010210ARB01	Solder	Keyed	Gold	Copper Alloy	3 A	Dust Protected	IP50	Blue Gray	10	Female Sockets Receptacle	333 V	Unshielded			Push-Pull	Panel Mount Through Hole	7 µin	Plastic	Polyphenylene Sulfide PPS	120 °C	-20 °C	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Bulkhead Front Side Nut
NorComp Inc. 8P1P010200NRB01	Solder Cup	Keyed	Gold	Copper Alloy	3 A	Dust Protected	IP50	Black Gray	10	Female Sockets Receptacle	333 V	Unshielded			Push-Pull	Panel Mount	7 µin	Plastic	Polyphenylene Sulfide PPS	120 °C	-20 °C	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Bulkhead Front Side Nut
NorComp Inc. 8P1P01017BNL521	Solder Cup	Keyed	Gold	Copper Alloy	3 A	Dust Protected	IP50	Black Gray	10	Male Pins Plug	333 V	Unshielded	0.157 in	0.197 in	Push-Pull	Free Hanging (In-Line)	7 µin	Plastic	Polyphenylene Sulfide PPS	120 °C	-20 °C	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)		Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Backshell Strain Relief
NorComp Inc. 8P1P010200GRF01	Solder Cup	Keyed	Gold	Copper Alloy	3 A	Dust Protected	IP50	Gray	10	Female Sockets Receptacle	333 V	Unshielded			Push-Pull	Panel Mount	7 µin	Plastic	Polyphenylene Sulfide PPS	120 °C	-20 °C	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Bulkhead Rear Side Nut
NorComp Inc. 8P1P010210JRBR1	Solder	Keyed	Gold	Copper Alloy	3 A	Dust Protected	IP50	Gray Yellow	10	Female Sockets Receptacle	333 V	Unshielded			Push-Pull	Panel Mount Right Angle Through Hole	7 µin	Plastic	Polyphenylene Sulfide PPS	120 °C	-20 °C	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Bulkhead Front Side Nut
NorComp Inc. 8P1P01017BVL521	Solder Cup	Keyed	Gold	Copper Alloy	3 A	Dust Protected	IP50	Gray Green	10	Male Pins Plug	333 V	Unshielded	0.157 in	0.197 in	Push-Pull	Free Hanging (In-Line)	7 µin	Plastic	Polyphenylene Sulfide PPS	120 °C	-20 °C	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)		Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Backshell Strain Relief
NorComp Inc. 8P1P01017BAL621	Solder Cup	Keyed	Gold	Copper Alloy	3 A	Dust Protected	IP50	Blue Gray	10	Male Pins Plug	333 V	Unshielded	0.197 in	0.236 in	Push-Pull	Free Hanging (In-Line)	7 µin	Plastic	Polyphenylene Sulfide PPS	120 °C	-20 °C	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)		Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Backshell Strain Relief
