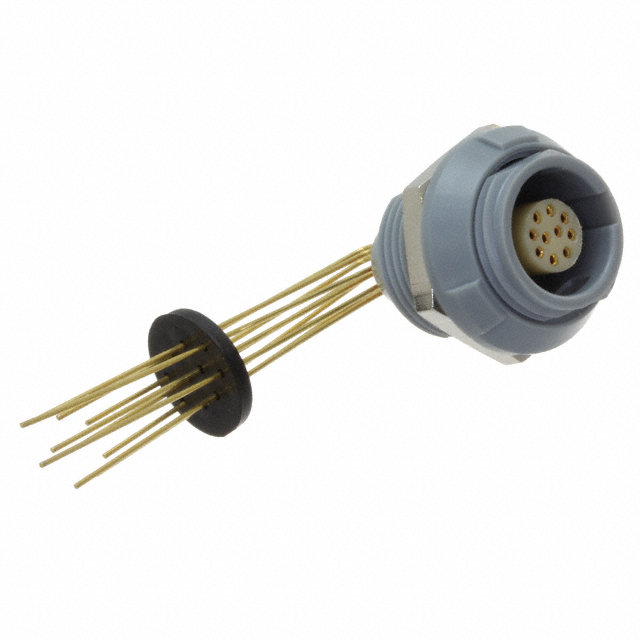

8P1P010210GRBR1

Active

MH Connectors

CONN RCPT FMALE 10POS GOLD SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8P1P010210GRBR1

Active

MH Connectors

CONN RCPT FMALE 10POS GOLD SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8P1P010210GRBR1

Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	7 µin
Contact Finish Thickness - Mating	0.178 µm
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	10
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polycarbonate (PC), Polyacrylonitrile Butadiene Styrene (ABS)
Shielding	Unshielded
Termination	Solder
Voltage Rating	333 V

8P1P010 Series

Part	Mounting Type	Ingress Protection	Insert Material	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Fastening Type	Primary Material	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Connector Type	Number of Positions	Voltage Rating	Orientation	Contact Material	Color	Termination	Mounting Feature	Features
MH Connectors 8P1P01017NNL521	Free Hanging (In-Line)	IP50	Polyphenylene Sulfide (PPS)	3 A	7 µin	0.178 µm	Gold	Push-Pull	Plastic	Unshielded	-20 C	120 °C	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	4 mm	5 mm	0.157 in	0.197 in	Male Pins Plug	10	333 V	Keyed	Copper Alloy
MH Connectors 8P1P01017NNL421	Free Hanging (In-Line)	IP50	Polyphenylene Sulfide (PPS)	3 A	7 µin	0.178 µm	Gold	Push-Pull	Plastic	Unshielded	-20 C	120 °C	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	2.2 mm	3.99 mm	0.087 in	0.157 in	Male Pins Plug	10	333 V	Keyed	Copper Alloy
MH Connectors 8P1P010210GRBR1	Panel Mount Right Angle Through Hole	IP50	Polyphenylene Sulfide (PPS)	3 A	7 µin	0.178 µm	Gold	Push-Pull	Plastic	Unshielded	-20 C	120 °C	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)					Receptacle Female Sockets	10	333 V	Keyed	Copper Alloy	Gray	Solder	Bulkhead - Front Side Nut
MH Connectors 8P1P010210ARB01	Panel Mount Through Hole	IP50	Polyphenylene Sulfide (PPS)	3 A	7 µin	0.178 µm	Gold	Push-Pull	Plastic	Unshielded	-20 C	120 °C	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)					Receptacle Female Sockets	10	333 V	Keyed	Copper Alloy	Blue Gray	Solder	Bulkhead - Front Side Nut
MH Connectors 8P1P010200NRB01		IP50	Polyphenylene Sulfide (PPS)	3 A	7 µin	0.178 µm	Gold	Push-Pull	Plastic	Unshielded	-20 C	120 °C	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)					Receptacle Female Sockets	10	333 V	Keyed	Copper Alloy			Bulkhead - Front Side Nut
MH Connectors 8P1P010210NRBR1	Panel Mount Right Angle Through Hole	IP50	Polyphenylene Sulfide (PPS)	3 A	7 µin	0.178 µm	Gold	Push-Pull	Plastic	Unshielded	-20 C	120 °C	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)					Receptacle Female Sockets	10	333 V	Keyed	Copper Alloy		Solder	Bulkhead - Front Side Nut
MH Connectors 8P1P01017BNL521	Free Hanging (In-Line)	IP50	Polyphenylene Sulfide (PPS)	3 A	7 µin	0.178 µm	Gold	Push-Pull	Plastic	Unshielded	-20 C	120 °C	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	4 mm	5 mm	0.157 in	0.197 in	Male Pins Plug	10	333 V	Keyed	Copper Alloy				Backshell Strain Relief
MH Connectors 8P1P010200GRF01		IP50	Polyphenylene Sulfide (PPS)	3 A	7 µin	0.178 µm	Gold	Push-Pull	Plastic	Unshielded	-20 C	120 °C	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)					Receptacle Female Sockets	10	333 V	Keyed	Copper Alloy	Gray		Bulkhead - Rear Side Nut
MH Connectors 8P1P01017BVL521	Free Hanging (In-Line)	IP50	Polyphenylene Sulfide (PPS)	3 A	7 µin	0.178 µm	Gold	Push-Pull	Plastic	Unshielded	-20 C	120 °C	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	4 mm	5 mm	0.157 in	0.197 in	Male Pins Plug	10	333 V	Keyed	Copper Alloy	Gray Green			Backshell Strain Relief
MH Connectors 8P1P010200GRB01		IP50	Polyphenylene Sulfide (PPS)	3 A	7 µin	0.178 µm	Gold	Push-Pull	Plastic	Unshielded	-20 C	120 °C	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)					Receptacle Female Sockets	10	333 V	Keyed	Copper Alloy	Gray		Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 28.80

Description

General part information

8P1P010 Series

10 Position Circular Connector Receptacle, Female Sockets Solder
