SSI-LXMP5011SRC150

Active

Lumex Opto/Components Inc.

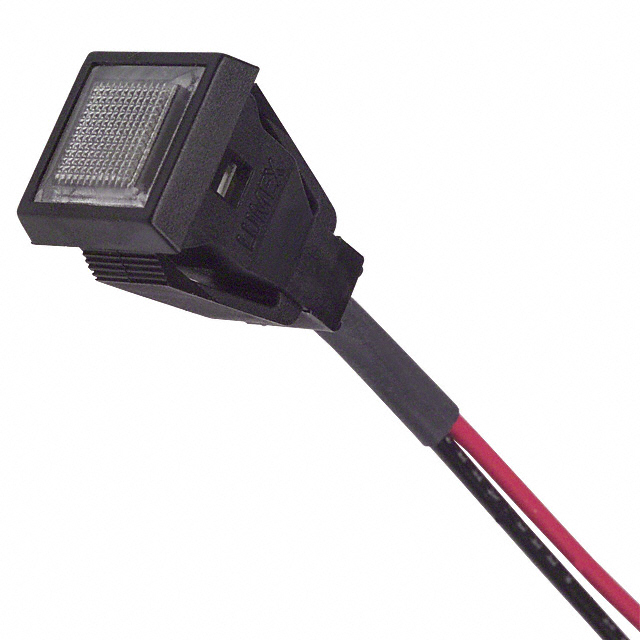

LED 12MMSQR SUPREDCLR 6"LD PNLMT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 12MMSQR SUPREDCLR 6"LD PNLMT

Technical Specifications

Parameters and characteristics commom to parts in this series

LED 12MM SQR GRN CLR 6"LDS PNLMT

Part	Voltage	Current	Lamp Color	Millicandela Rating	Type	Viewing Angle	Lens Style	Lens Transparency	Lens Color	Lens Size	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Cutout Shape	Wavelength - Peak
Lumex Opto/Components Inc. SSI-LXMP5011GC-150	2.2 V	25 mA	Green	15 mcd	LED	60 °	Square with Flat Top	Clear	Colorless	9.1 mm	0.41 in	10.41 mm	0.41 in	10.41 mm	Square	565 nm
Lumex Opto/Components Inc. SSI-LXMP5011SRC150	1.8 V	30 mA	Red	60 mcd	LED	60 °	Square with Flat Top	Clear	Colorless	9.1 mm	0.41 in	10.41 mm	0.41 in	10.41 mm	Square	660 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Panel Indicator Red Clear 60° 1.8V 30mA Wire Leads - 6" (152.40mm)
