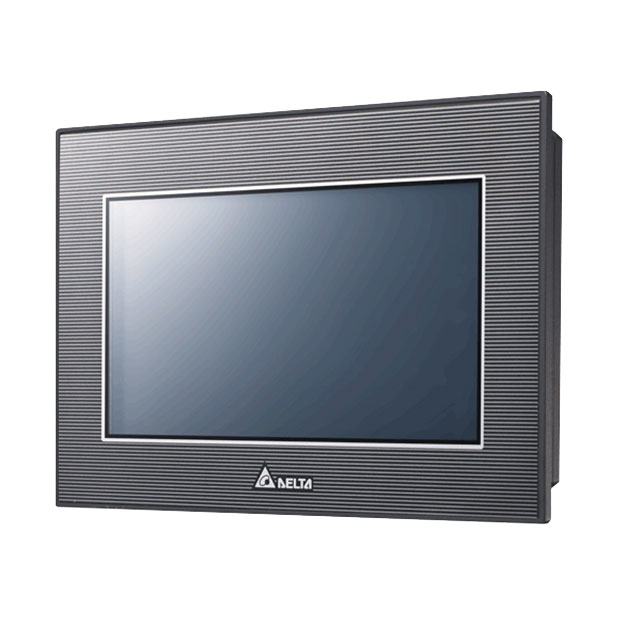

TP70P-16TP1R

Active

Delta Electronics/Industrial Automation

7" TOUCH SCREEN HMI WITH BUILT-I

Search across all available documentation for this part.

Active

Delta Electronics/Industrial Automation

7" TOUCH SCREEN HMI WITH BUILT-I

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TP70P-16TP1R	TP70 Series

Approval Agency	UL, CE	UL, CE
Communications	RS-485, USB	RS-485, USB
Display Type	TFT - Color LCD	TFT - Color LCD
Expandable	False	False
Features	Battery Backup (Lithium)	Battery Backup (Lithium)
Ingress Protection	IP65 - Dust Tight, Water Resistant; NEMA 4	IP65 - Dust Tight, Water Resistant; NEMA 4
Memory Size	64 MB	64 MB
Number of Inputs and Type [custom]	8	8 - 16
Number of Inputs and Type [custom]	Digital	Digital
Number of Outputs and Type	-	16
Number of Outputs and Type [custom]	Relay	Relay
Number of Outputs and Type [x]	8	8
Software	TPEditor	TPEditor
Voltage - Supply	24 VDC	24 VDC

7" TOUCH SCREEN HMI WITH BUILT-I

Part	Features	Software	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Expandable	Voltage - Supply	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Ingress Protection	Communications	Memory Size	Approval Agency	Display Type	Number of Outputs and Type [x]
Delta Electronics/Industrial Automation TP70P-32TP1R	Battery Backup (Lithium)	TPEditor	16	Digital		24 VDC	16	Relay	IP65 - Dust Tight, Water Resistant; NEMA 4	RS-485, USB	64 MB	CE, UL	TFT - Color LCD
Delta Electronics/Industrial Automation TP70P-16TP1R	Battery Backup (Lithium)	TPEditor	8	Digital		24 VDC		Relay	IP65 - Dust Tight, Water Resistant; NEMA 4	RS-485, USB	64 MB	CE, UL	TFT - Color LCD	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 299.25

General part information

Programmable Logic Controller (PLC) Panel Mount 24VDC
