1-102241-4
ActiveTE Connectivity AMP Connectors

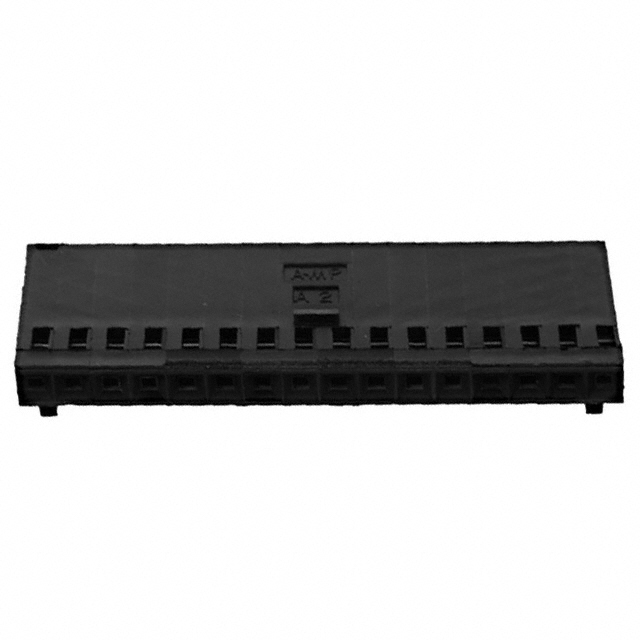

CONN RCPT HSG 16POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-102241-4
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 16POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-102241-4 | 102241 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Material | Nylon, Polyamide (PA), Glass Filled | Nylon, Polyamide (PA), Glass Filled, Thermoplastic |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 16 | 16 |
| Number of Positions | - | 4 - 22 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2400 | $ 1.25 | |
102241 Series
CONN RCPT HSG 13POS 2.54MM
| Part | Number of Positions | Contact Termination | Note | Number of Rows | Pitch [x] | Pitch [x] | Contact Type | Color | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Mounting Type | Insulation Material | Connector Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-102241-1 | 13 | Crimp | Contacts Not Included | 1 | 2.54 mm | 0.1 in | Female Socket | Black | -65 ░C | 105 ░C | Locking Ramp | Free Hanging (In-Line) | Glass Filled, Nylon, Polyamide (PA) | Receptacle | |
TE Connectivity AMP Connectors 1-102241-4 | Crimp | Contacts Not Included | 1 | 2.54 mm | 0.1 in | Female Socket | Black | -65 ░C | 105 ░C | Locking Ramp | Free Hanging (In-Line) | Glass Filled, Nylon, Polyamide (PA) | Receptacle | 16 | |
TE Connectivity AMP Connectors 2-102241-0 | 22 positions | Crimp | Contacts Not Included | 1 | 2.54 mm | 0.1 in | Female Socket | Black | -65 ░C | 105 ░C | Locking Ramp | Free Hanging (In-Line) | Thermoplastic | Receptacle | |
TE Connectivity AMP Connectors 1-102241-6 | 18 | Crimp | Contacts Not Included | 1 | 2.54 mm | 0.1 in | Female Socket | Black | -65 ░C | 105 ░C | Locking Ramp | Free Hanging (In-Line) | Glass Filled, Nylon, Polyamide (PA) | Receptacle | |
TE Connectivity AMP Connectors 102241-7 | 9 | Crimp | Contacts Not Included | 1 | 2.54 mm | 0.1 in | Female Socket | Black | Locking Ramp | Free Hanging (In-Line) | Receptacle | ||||
TE Connectivity AMP Connectors 102241-9 | 11 | Crimp | Contacts Not Included | 1 | 2.54 mm | 0.1 in | Female Socket | Black | -65 ░C | 105 ░C | Locking Ramp | Free Hanging (In-Line) | Glass Filled, Nylon, Polyamide (PA) | Receptacle | |
TE Connectivity AMP Connectors 102241-2 | 4 | Crimp | Contacts Not Included | 1 | 2.54 mm | 0.1 in | Female Socket | Black | -65 ░C | 105 ░C | Locking Ramp | Free Hanging (In-Line) | Glass Filled, Nylon, Polyamide (PA) | Receptacle | |
TE Connectivity AMP Connectors 1-102241-8 | 20 | Crimp | Contacts Not Included | 1 | 2.54 mm | 0.1 in | Female Socket | Black | -65 ░C | 105 ░C | Locking Ramp | Free Hanging (In-Line) | Glass Filled, Nylon, Polyamide (PA) | Receptacle |
Description
General part information
102241 Series
16 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
