NE85634-T1

Obsolete

CEL

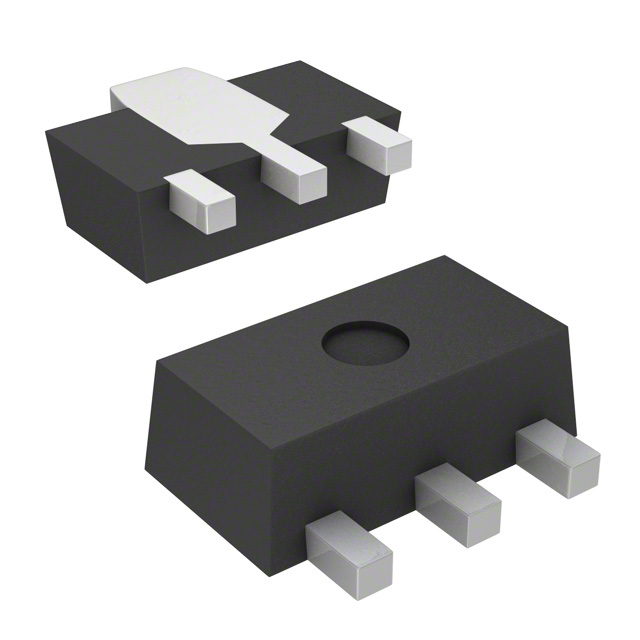

RF TRANS NPN 12V 6.5GHZ SOT89

Search across all available documentation for this part.

Obsolete

CEL

RF TRANS NPN 12V 6.5GHZ SOT89

Technical Specifications

Parameters and characteristics for this part

Specification	NE85634-T1

Current - Collector (Ic) (Max) [Max]	100 mA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	50
Frequency - Transition	6.5 GHz
Mounting Type	Surface Mount
Noise Figure (dB Typ @ f)	1.4 dB
Operating Temperature	150 °C
Package / Case	TO-243AA
Power - Max [Max]	2 W
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	12 V

Part	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max)	Noise Figure (dB Typ @ f)	Frequency - Transition	Mounting Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Transistor Type	Gain	Package / Case	Power - Max [Max]	Operating Temperature
CEL NE85634-A	100 mA	12 V	1.1 dB	6.5 GHz	Surface Mount	50	NPN	9 dBi	TO-243AA	2 W	150 °C
CEL NE85634-T1-A	100 mA	12 V	1.1 dB	6.5 GHz	Surface Mount	50	NPN	9 dBi	TO-243AA	2 W	150 °C
CEL NE85634-T1	100 mA	12 V	1.4 dB	6.5 GHz	Surface Mount	50	NPN		TO-243AA	2 W	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Transistor NPN 12V 100mA 6.5GHz 2W Surface Mount SOT-89

Technical documentation and resources

No documents available
