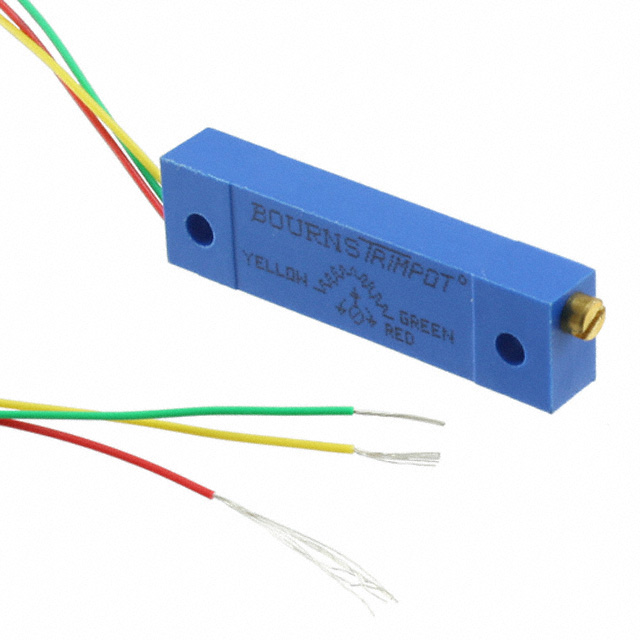

Specification	3057L-1-200M

Adjustment Type	Side Adjustment
Mounting Type	Wire Leads, Panel Mount
Number of Turns	22 turns
Power (Watts)	1 W
Resistance	20 Ohm
Resistive Material	Wirewound
Size / Dimension Length	0.315 in
Size / Dimension Shape	Rectangular
Size / Dimension Width	0.19 in
Temperature Coefficient	50 ppm/°C
Termination Style	Wire Leads
Tolerance	5 %

3057L Series

Part	Termination Style	Resistance	Tolerance	Adjustment Type	Power (Watts)	Mounting Type	Temperature Coefficient	Number of Turns	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Width	Resistive Material
Bourns Inc. 3057L-1-203M	Wire Leads	20 kOhm	5 %	Side Adjustment	1 W	Panel Mount Wire Leads	50 ppm/°C	22 turns	0.315 in	Rectangular	0.19 in	Wirewound
Bourns Inc. 3057L-1-501	Wire Leads	500 Ohm	5 %	Side Adjustment	1 W	Chassis Mount	50 ppm/°C	22 turns	0.315 in	Rectangular	0.19 in	Wirewound
Bourns Inc. 3057L-1-500M	Wire Leads	50 Ohms	5 %	Side Adjustment	1 W	Panel Mount Wire Leads	50 ppm/°C	22 turns	0.315 in	Rectangular	0.19 in	Wirewound
Bourns Inc. 3057L-1-503M	Wire Leads	50 kOhm	5 %	Side Adjustment	1 W	Panel Mount Wire Leads	50 ppm/°C	22 turns	0.315 in	Rectangular	0.19 in	Wirewound
Bourns Inc. 3057L-1-200M	Wire Leads	20 Ohm	5 %	Side Adjustment	1 W	Panel Mount Wire Leads	50 ppm/°C	22 turns	0.315 in	Rectangular	0.19 in	Wirewound
Bourns Inc. 3057L-1-101M	Wire Leads	100 Ohms	5 %	Side Adjustment	1 W	Panel Mount Wire Leads	50 ppm/°C	22 turns	0.315 in	Rectangular	0.19 in	Wirewound
Bourns Inc. 3057L-1-203	Wire Leads	20 kOhm	5 %	Side Adjustment	1 W	Chassis Mount	50 ppm/°C	22 turns	0.315 in	Rectangular	0.19 in	Wirewound
Bourns Inc. 3057L-1-201M	Wire Leads	200 Ohm	5 %	Side Adjustment	1 W	Panel Mount Wire Leads	50 ppm/°C	22 turns	0.315 in	Rectangular	0.19 in	Wirewound
Bourns Inc. 3057L-1-201	Wire Leads	200 Ohm	5 %	Side Adjustment	1 W	Chassis Mount	50 ppm/°C	22 turns	0.315 in	Rectangular	0.19 in	Wirewound
Bourns Inc. 3057L-1-253	Wire Leads	25 kOhm	5 %	Side Adjustment	1 W	Chassis Mount	50 ppm/°C	22 turns	0.315 in	Rectangular	0.19 in	Wirewound
