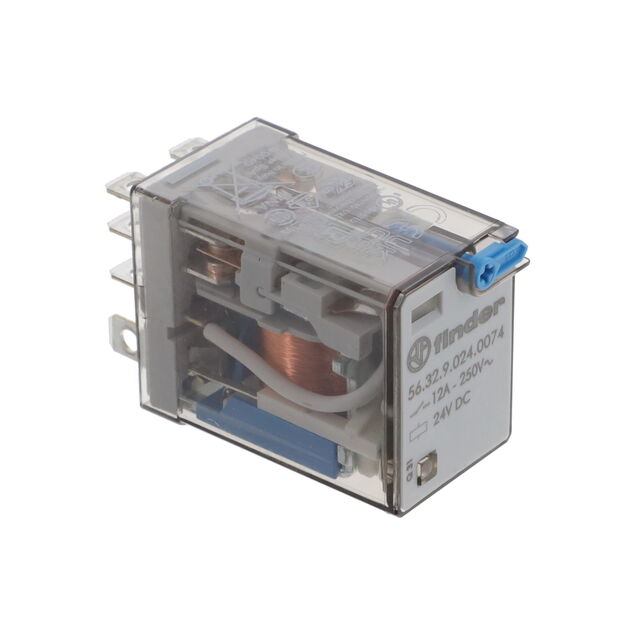

56.32.9.024.0074

Active

Finder Relays, Inc.

RELAY GEN PURPOSE DPDT 12A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

56.32.9.024.0074

Active

Finder Relays, Inc.

RELAY GEN PURPOSE DPDT 12A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	56.32.9.024.0074

Approval Agency	cURus, VDE, CE, UKCA, CSA, CCC, RINA, ENEC, EAC
Coil Current	40 mA
Coil Resistance	600 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	12 A
Load - Max Switching	4800 VA
Mounting Type	Socketable
Must Operate Voltage	19.2 VDC
Must Release Voltage	4.8 VDC
Operate Time	9 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	6 ms
Switching Voltage [Max]	400 VAC
Termination Style	Plug In, Quick Connect - 0.187" (4.7mm)

56.32.9 Series

Part	Release Time	Relay Type	Operating Temperature [Min]	Operating Temperature [Max]	Must Release Voltage	Coil Type	Contact Rating (Current)	Must Operate Voltage	Contact Form	Switching Voltage [Max]	Approval Agency	Operate Time	Coil Voltage	Mounting Type	Termination Style	Coil Resistance	Contact Material	Coil Current	Load - Max Switching	Features
Finder Relays, Inc. 56.32.9.024.0040	6 ms	General Purpose	-40 °C	70 °C	4.8 VDC	Non Latching	12 A	19.2 VDC	DPDT (2 Form C)	400 VAC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	9 ms	24 VDC	Socketable	Plug In Quick Connect - 0.187" (4.7mm)	600 Ohms	Silver Nickel (AgNi)	40 mA	4800 VA
Finder Relays, Inc. 56.32.9.024.0090	6 ms	General Purpose	-40 °C	70 °C	4.8 VDC	Non Latching	12 A	19.2 VDC	DPDT (2 Form C)	400 VAC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	9 ms	24 VDC	Socketable	Plug In Quick Connect - 0.187" (4.7mm)	600 Ohms	Silver Nickel (AgNi)	40 mA	4800 VA	Diode Lighted Indicator Test Button
Finder Relays, Inc. 56.32.9.012.0040	6 ms	General Purpose	-40 °C	70 °C	2.4 VDC	Non Latching	12 A	9.6 VDC	DPDT (2 Form C)	400 VAC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	9 ms	12 VDC	Socketable	Plug In Quick Connect - 0.187" (4.7mm)	140 Ohms	Silver Nickel (AgNi)	86 mA	4800 VA
Finder Relays, Inc. 56.32.9.125.0090	6 ms	General Purpose	-40 °C	70 °C	25 VDC	Non Latching	12 A	100 VDC	DPDT (2 Form C)	400 VAC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	9 ms	125 VDC	Socketable	Plug In Quick Connect - 0.187" (4.7mm)	17.3 kOhms	Silver Nickel (AgNi)	7.2 mA	4800 VA	Diode Lighted Indicator Test Button
Finder Relays, Inc. 56.32.9.024.0074	6 ms	General Purpose	-40 °C	70 °C	4.8 VDC	Non Latching	12 A	19.2 VDC	DPDT (2 Form C)	400 VAC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	9 ms	24 VDC	Socketable	Plug In Quick Connect - 0.187" (4.7mm)	600 Ohms	Silver Nickel (AgNi)	40 mA	4800 VA
Finder Relays, Inc. 56.32.9.125.0080	6 ms	General Purpose	-40 °C	70 °C	25 VDC	Non Latching	12 A	100 VDC	DPDT (2 Form C)	400 VAC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	9 ms	125 VDC	Socketable	Plug In Quick Connect - 0.187" (4.7mm)	17.3 kOhms	Silver Nickel (AgNi)	7.2 mA	4800 VA	Diode Lighted Indicator
Finder Relays, Inc. 56.32.9.012.0070	6 ms	General Purpose	-40 °C	70 °C	2.4 VDC	Non Latching	12 A	9.6 VDC	DPDT (2 Form C)	400 VAC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	9 ms	12 VDC	Socketable	Plug In Quick Connect - 0.187" (4.7mm)	140 Ohms	Silver Nickel (AgNi)	86 mA	4800 VA	Lighted Indicator Test Button
Finder Relays, Inc. 56.32.9.024.0060	6 ms	General Purpose	-40 °C	70 °C	4.8 VDC	Non Latching	12 A	19.2 VDC	DPDT (2 Form C)	400 VAC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	9 ms	24 VDC	Socketable	Plug In Quick Connect - 0.187" (4.7mm)	600 Ohms	Silver Nickel (AgNi)	40 mA	4800 VA	Lighted Indicator

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.20
		10	$ 13.51
		30	$ 12.84
		50	$ 12.16
		100	$ 11.49
		250	$ 10.47
		500	$ 9.80
		1000	$ 9.29

Description

General part information

56.32.9 Series

General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
