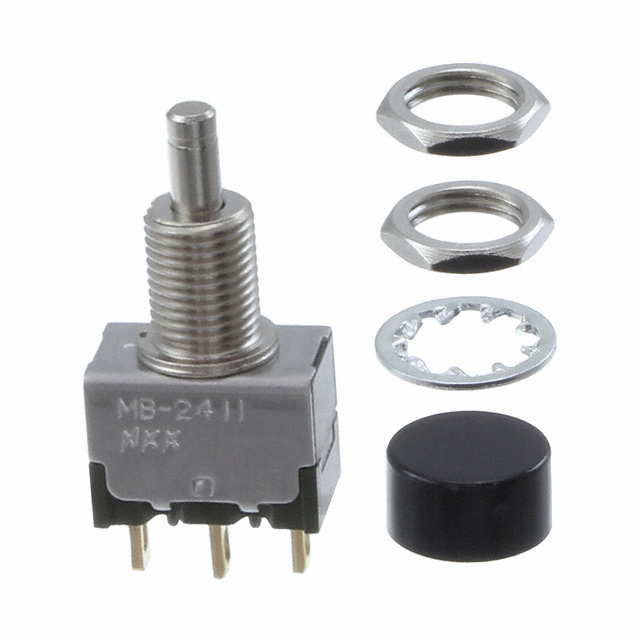

MB2411S1G01-HA

Obsolete

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MB2411S1G01-HA

Obsolete

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MB2411S1G01-HA

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

MB2411S Series

Part	Mechanical Life	Termination Style	Features	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Actuator Marking	Mounting Type	Actuator Type	Voltage Rating - DC	Type	Voltage Rating - AC	Color - Actuator/Cap	Current Rating (Amps)	Circuit	Switch Function	Panel Cutout Dimensions [diameter]
NKK Switches MB2411S2G40-FC	200000 Cycles	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	100000 Cycles	No Marking	Right Angle Through Hole Vertical	Button Round	28 V	Standard	28 V	Red	0.4 VA	SPDT	On-Mom
NKK Switches MB2411S1G01-HC	200000 Cycles	Solder Lug	Epoxy Sealed Terminals	-30 ░C	85 °C	100000 Cycles	No Marking	Panel Mount Rear	Button Round	28 V	Standard	28 V	Red	0.4 VA	SPDT	On-Mom	6.5 mm
NKK Switches MB2411S1W03-HB	200000 Cycles	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	25000 Steps	No Marking	Panel Mount Rear	Button Round		Standard	125 V	White	3 A	SPDT	On-Mom	6.5 mm
NKK Switches MB2411S1W01-FA	200000 Cycles	Solder Lug	Epoxy Sealed Terminals	-30 ░C	85 °C	25000 Steps	No Marking	Panel Mount Rear	Button Round		Standard	125 V	Black	3 A	SPDT	On-Mom	6.5 mm
NKK Switches MB2411S1W03-HC	200000 Cycles	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	25000 Steps	No Marking	Panel Mount Rear	Button Round		Standard	125 V	Red	3 A	SPDT	On-Mom	6.5 mm
NKK Switches MB2411S1W01-HA	200000 Cycles	Solder Lug	Epoxy Sealed Terminals	-30 ░C	85 °C	25000 Steps	No Marking	Panel Mount Rear	Button Round		Standard	125 V	Black	3 A	SPDT	On-Mom	6.5 mm
NKK Switches MB2411S2G40-HC	200000 Cycles	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	100000 Cycles	No Marking	Right Angle Through Hole Vertical	Button Round	28 V	Standard	28 V	Red	0.4 VA	SPDT	On-Mom
NKK Switches MB2411S1G01-HA	200000 Cycles	Solder Lug	Epoxy Sealed Terminals	-30 ░C	85 °C	100000 Cycles	No Marking	Panel Mount Rear	Button Round	28 V	Standard	28 V	Black	0.4 VA	SPDT	On-Mom	6.5 mm
NKK Switches MB2411S1W01	200000 Cycles	Solder Lug	Epoxy Sealed Terminals	-30 ░C	85 °C	25000 Steps	No Marking	Panel Mount Rear	Plunger for Cap		Standard	125 V		3 A	SPDT	On-Mom	6.5 mm
NKK Switches MB2411S1W03	200000 Cycles	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	25000 Steps	No Marking	Panel Mount Rear	Plunger for Cap		Standard	125 V		3 A	SPDT	On-Mom	6.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.37

Description

General part information

MB2411S Series

Pushbutton Switch SPDT Standard Panel Mount, Rear
