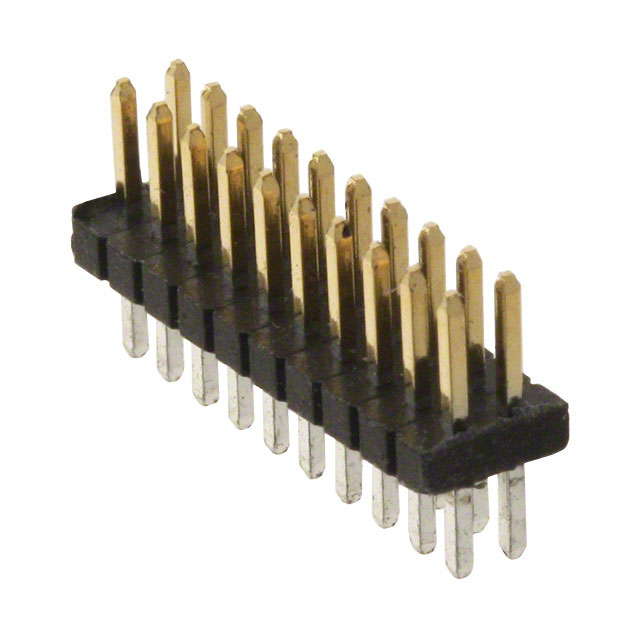

M50-3501042

Active

Harwin Inc.

CONN HEADER VERT 20POS 1.27MM

Search across all available documentation for this part.

Active

Harwin Inc.

CONN HEADER VERT 20POS 1.27MM

Technical Specifications

Parameters and characteristics for this part

Specification	M50-3501042

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Finish Thickness - Post	2.5 µm
Contact Finish Thickness - Post	98.4 µin
Contact Length - Mating	3 mm
Contact Length - Mating	0.118 in
Contact Length - Post	0.091 in
Contact Length - Post	2.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.039 "
Insulation Height	1 mm
Insulation Material	Thermoplastic
Mated Stacking Heights	6.23 mm, 3.2 mm, 5.4 mm, 4.6 mm, 5.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	6.3 mm
Overall Contact Length [x]	0.248 in
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

Part	Mated Stacking Heights	Style	Connector Type	Contact Length - Mating	Contact Length - Mating	Number of Positions	Contact Type	Overall Contact Length [x]	Overall Contact Length	Termination	Contact Finish - Mating	Insulation Height	Insulation Height	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Shrouding	Contact Finish - Post	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Number of Positions Loaded	Number of Rows	Current Rating (Amps)	Material Flammability Rating	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Fastening Type
Harwin Inc. M50-3501042	3.2 mm 4.6 mm 5.4 mm 5.5 mm 6.23 mm	Board to Board Cable	Header	3 mm	0.118 in	20	Male Pin	0.248 in	6.3 mm	Solder	Gold	0.039 "	1 mm	Black	-40 °C	105 ░C	2.5 µm	98.4 µin	Copper Alloy	0.091 in	2.3 mm	0.05 in	1.27 mm	Unshrouded	Tin	Through Hole	3 µin	0.076 µm	Thermoplastic	All	2	1 A	UL94 V-0	Square	0.05 in	1.27 mm	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 20 position 0.050" (1.27mm)
