10124461-101LF

Active

Amphenol ICC (FCI)

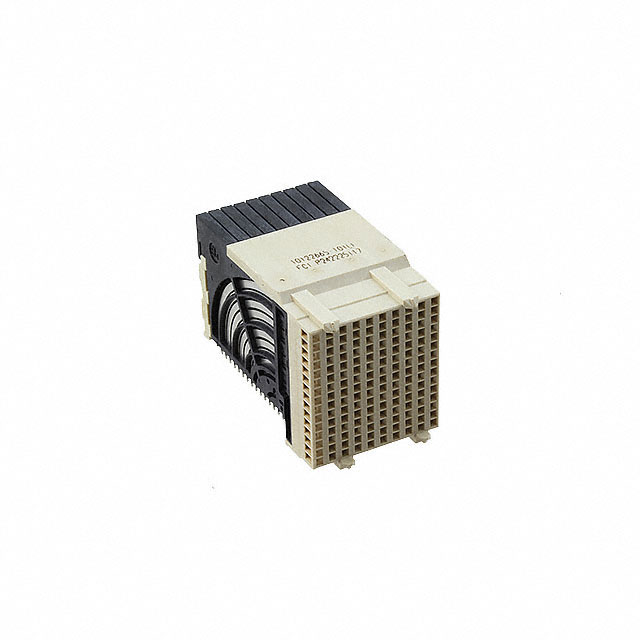

CONN RCPT HI SPEED 150P EDGE MT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT HI SPEED 150P EDGE MT

Technical Specifications

Parameters and characteristics for this part

Specification	10124461-101LF

Color	Black, Natural
Connector Style	High Speed
Connector Type	Receptacle, Female Sockets
Connector Usage	Daughtercard
Contact Finish	Gold
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	10
Number of Positions	150
Number of Positions Loaded	All
Number of Rows	15
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit

Part	Number of Positions Loaded	Number of Rows	Pitch [x]	Pitch [x]	Termination	Material Flammability Rating	Mounting Type	Number of Positions	Contact Finish	Connector Usage	Number of Columns	Connector Type	Connector Style	Color	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol ICC (FCI) 10124461-101LF	All	15	0.079 in	2 mm	Press-Fit	UL94 V-0	Board Edge Right Angle Through Hole	150	Gold	Daughtercard	10	Receptacle Female Sockets	High Speed	Black Natural	85 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

150 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Black, Natural High Speed

Technical documentation and resources
