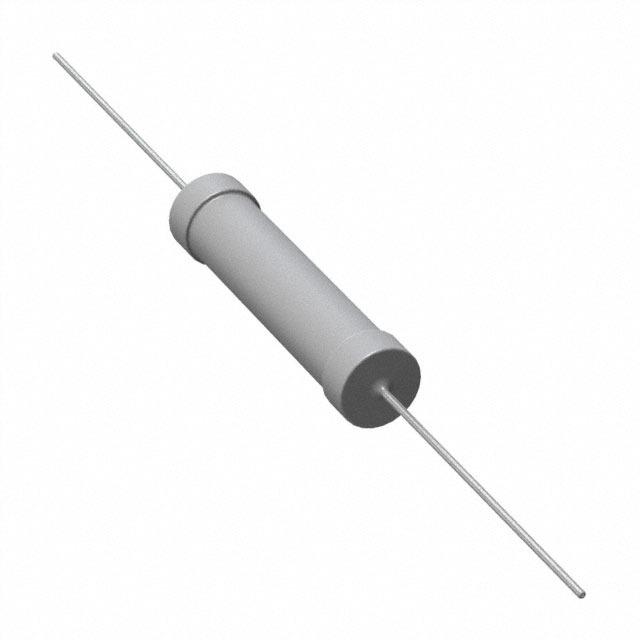

ER16680RJL

Active

TE Connectivity Passive Product

RES 680 OHM 5% 11W AXIAL

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES 680 OHM 5% 11W AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	ER16680RJL

Composition	Wirewound
Number of Terminations	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Power (Watts)	11 W
Resistance	680 Ohms
Size / Dimension [diameter]	0.315 in
Size / Dimension [diameter]	8 mm
Size / Dimension [x]	38.1 mm
Size / Dimension [x]	1.5 "
Supplier Device Package	Axial
Temperature Coefficient [Max]	60 ppm/°C
Temperature Coefficient [Min]	0 ppm/°C
Tolerance	5 %

Part	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient [Max]	Temperature Coefficient [Min]	Composition	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Number of Terminations	Resistance	Package / Case	Power (Watts)
TE Connectivity Passive Product ER16680RJL	Axial	-55 °C	200 °C	60 ppm/°C	0 ppm/°C	Wirewound	5 %	0.315 in	8 mm	38.1 mm	1.5 "	2	680 Ohms	Axial	11 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 1.15

General part information

680 Ohms ±5% 11W Through Hole Resistor Axial Wirewound
