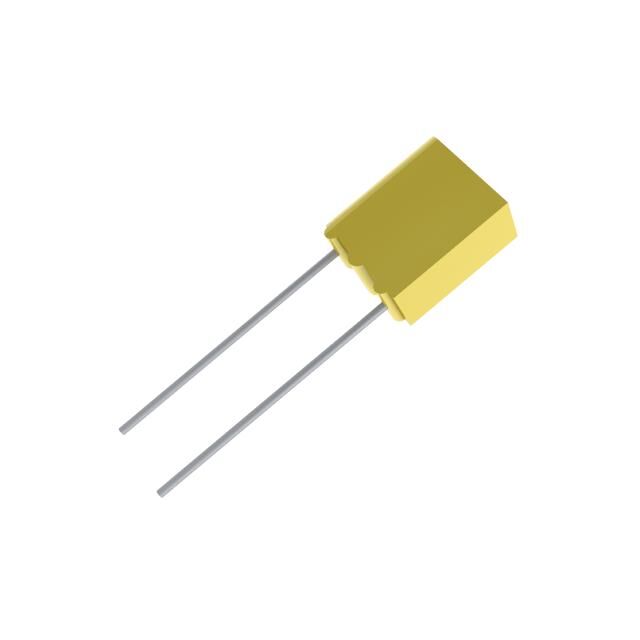

T340C335M040AT

Active

KEMET

3.30UF 40.0V ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_T2041_T340.pdf T340C335M040AT Spec +1

T340C335M040AT

Active

KEMET

3.30UF 40.0V ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsKEM_T2041_T340.pdf T340C335M040AT Spec +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T340C335M040AT

Capacitance	3.3 µF
Features	General Purpose
Height - Seated (Max) [Max]	0.413 in
Height - Seated (Max) [Max]	10.5 mm
Lead Spacing	5 mm
Lead Spacing	0.197 in
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	20 %
Type	Molded
Voltage - Rated	40 V

T340C Series

Part	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Type	Features	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Package / Case	ESR (Equivalent Series Resistance)
KEMET T340C565K050AS	10 %	0.413 in	10.5 mm	50 VDC	4.3 mm	0.287 "	7.3 mm	0.169 "	Through Hole	Molded	General Purpose	5.6 µF	-55 °C	125 °C	5 mm	0.197 in	Radial
KEMET T340C475K035AS	10 %	0.413 in	10.5 mm	35 V	4.3 mm	0.287 "	7.3 mm	0.169 "	Through Hole	Molded	General Purpose	4.7 µF	-55 °C	125 °C	5 mm	0.197 in	Radial	3 Ohm
KEMET T340C226M016AS	20 %	0.413 in	10.5 mm	16 V	4.3 mm	0.287 "	7.3 mm	0.169 "	Through Hole	Molded	General Purpose	22 µF	-55 °C	125 °C	5 mm	0.197 in	Radial
KEMET T340C335M040AT	20 %	0.413 in	10.5 mm	40 V	4.3 mm	0.287 "	7.3 mm	0.169 "	Through Hole	Molded	General Purpose	3.3 µF	-55 °C	125 °C	5 mm	0.197 in	Radial
KEMET T340C226M016AT	20 %	0.413 in	10.5 mm	16 V	4.3 mm	0.287 "	7.3 mm	0.169 "	Through Hole	Molded	General Purpose	22 µF	-55 °C	125 °C	5 mm	0.197 in	Radial
KEMET T340C336K015AT	10 %	0.413 in	10.5 mm	15 V	4.3 mm	0.287 "	7.3 mm	0.169 "	Through Hole	Molded	General Purpose	33 ÁF	-55 °C	125 °C	5 mm	0.197 in	Radial	1.6 Ohm
KEMET T340C106K025AT	10 %	0.413 in	10.5 mm	25 VDC	4.3 mm	0.287 "	7.3 mm	0.169 "	Through Hole	Molded	General Purpose	10 µF	-55 °C	125 °C	5 mm	0.197 in	Radial	2.5 Ohm
KEMET T340C106K035AS	10 %	0.413 in	10.5 mm	35 V	4.3 mm	0.287 "	7.3 mm	0.169 "	Through Hole	Molded	General Purpose	10 µF	-55 °C	125 °C	5 mm	0.197 in	Radial	2 Ohm
KEMET T340C685M035AS	20 %	0.413 in	10.5 mm	35 V	4.3 mm	0.287 "	7.3 mm	0.169 "	Through Hole	Molded	General Purpose	6.8 ÁF	-55 °C	125 °C	5 mm	0.197 in	Radial	2.5 Ohm
KEMET T340C226K016AT7301	10 %	0.413 in	10.5 mm	16 V	4.3 mm	0.287 "	7.3 mm	0.169 "	Through Hole	Molded	General Purpose	22 µF	-55 °C	125 °C	5 mm	0.197 in	Radial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 4.22
Newark	Each	100	$ 4.16
		250	$ 3.97
		500	$ 3.69

Description

General part information

T340C Series

3.3 µF Molded Tantalum Capacitors 40 V Radial

Documents

Technical documentation and resources

KEM_T2041_T340.pdf

Datasheet

T340C335M040AT Spec

Datasheet
