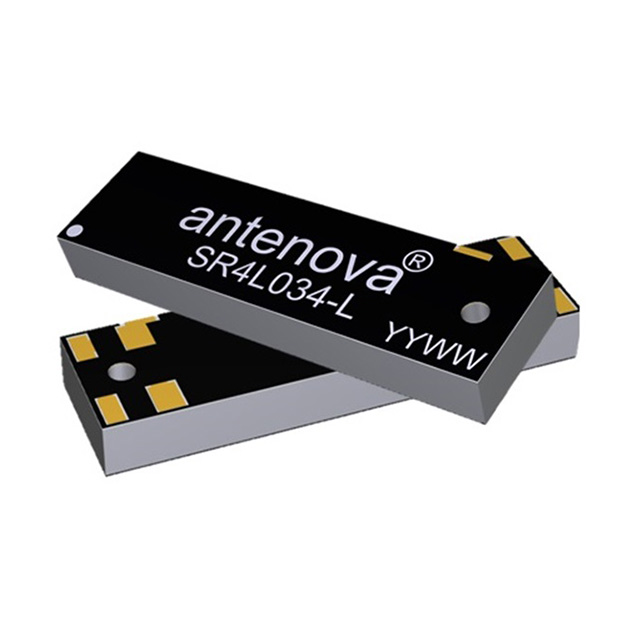

SR4L034-L

Active

Antenova

RF ANT 829MHZ/1.94GHZ PCB TRACE

Search across all available documentation for this part.

Active

Antenova

RF ANT 829MHZ/1.94GHZ PCB TRACE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SR4L034-L	SR4L034 Series

Antenna Type	PCB Trace	PCB Trace
Applications	4G, EDGE, DCS, GPRS, CDMA, IMT, 3G, GSM, HSPA, LTE, UMTS, PCS, WCDMA	4G, EDGE, DCS, GPRS, CDMA, IMT, 3G, GSM, HSPA, LTE, UMTS, PCS, WCDMA
For Use With/Related Products	-	SR4L034
Frequency	-	1.71 - 698 GHz
Frequency	-	2.17 - 960 MHz
Frequency (Center/Band)	1.94 GHz, 2.595 GHz, 829 MHz, 2.35 GHz	1.94 - 829 GHz
Frequency Group	Wide Band	Wide Band
Frequency Range [Max]	798 MHz, 2.69 GHz, 2.17 GHz, 960 MHz, 2.4 GHz	2.17 - 960 MHz
Frequency Range [Min]	1.71 GHz, 2.3 GHz, 824 MHz, 698 MHz, 2.5 GHz	1.71 - 824 GHz
Height (Max)	3.3 mm	3.3 mm
Height (Max) [Max] [z]	0.13 in	0.13 in
Mounting Type	Surface Mount	Surface Mount
Number of Bands	4	4
Return Loss	-7 dB, -6.6 dB, -6 dB, -5.1 dB, -4.9 dB	-7 - -4.9 dB
RF Family/Standard	Cellular	Cellular
Supplied Contents	-	Board(s)
Termination	Solder	Solder
Type	-	Antenna
VSWR	2.5, 3.7, 3.5, 2.8	2.5 - 3.7

INVERSA LEFT EVALUATION BOARD

Part	Frequency [Min]	Frequency [Max]	Type	Supplied Contents	For Use With/Related Products	Termination	Mounting Type	VSWR	Number of Bands	Applications	Return Loss	Height (Max) [Max] [z]	Height (Max)	Antenna Type	Frequency Range [Max]	Frequency Range [Min]	Frequency (Center/Band)	Frequency Group	RF Family/Standard
Antenova SR4L034-EVB-4	1.71 GHz, 2.3 GHz, 2.5 GHz, 698 MHz	2.17 GHz, 2.4 GHz, 2.7 GHz, 960 MHz	Antenna	Board(s)	SR4L034
Antenova SR4L034-L						Solder	Surface Mount	2.5, 2.8, 3.5, 3.7	4	3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA	-7 dB, -6.6 dB, -6 dB, -5.1 dB, -4.9 dB	0.13 in	3.3 mm	PCB Trace	2.17 GHz, 2.4 GHz, 2.69 GHz, 798 MHz, 960 MHz	1.71 GHz, 2.3 GHz, 2.5 GHz, 698 MHz, 824 MHz	1.94 GHz, 2.35 GHz, 2.595 GHz, 829 MHz	Wide Band	Cellular
Antenova SR4L034-R						Solder	Surface Mount	2.5, 2.8, 3.5, 3.7	4	3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA	-7 dB, -6.6 dB, -6 dB, -5.1 dB, -4.9 dB	0.13 in	3.3 mm	PCB Trace	2.17 GHz, 2.4 GHz, 2.69 GHz, 798 MHz, 960 MHz	1.71 GHz, 2.3 GHz, 2.5 GHz, 698 MHz, 824 MHz	1.94 GHz, 2.35 GHz, 2.595 GHz, 829 MHz	Wide Band	Cellular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA 3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA PCB Trace Solder Surface Mount
