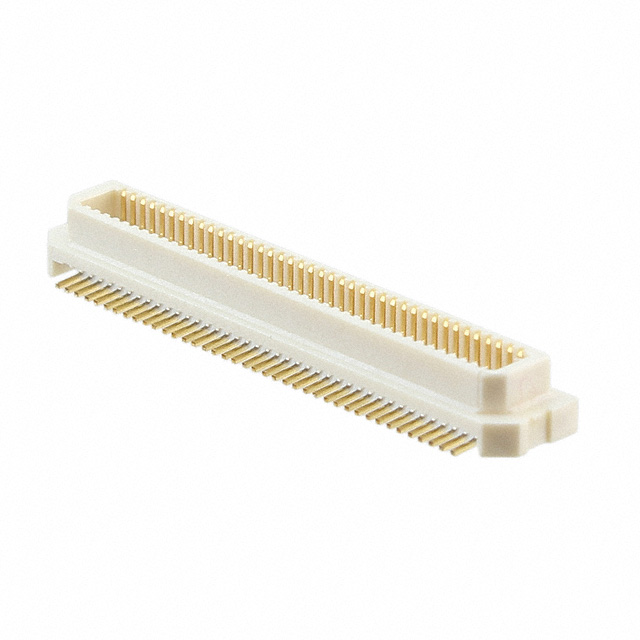

AXK680247YG

Obsolete

Panasonic Electric Works

CONN HDR 80POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN HDR 80POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK680247YG

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Height Above Board [z]	2.9 mm
Height Above Board [z]	0.114 "
Mated Stacking Heights	3.5 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Rows	Mated Stacking Heights	Mounting Type	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Contact Finish	Number of Positions	Connector Type
Panasonic Electric Works AXK680247YG	2	3.5 mm	Surface Mount	0.5 mm	0.02 in	2.9 mm	0.114 "	Gold	80	Header Outer Shroud Contacts
