6GK58964ME000AA0

Active

Siemens

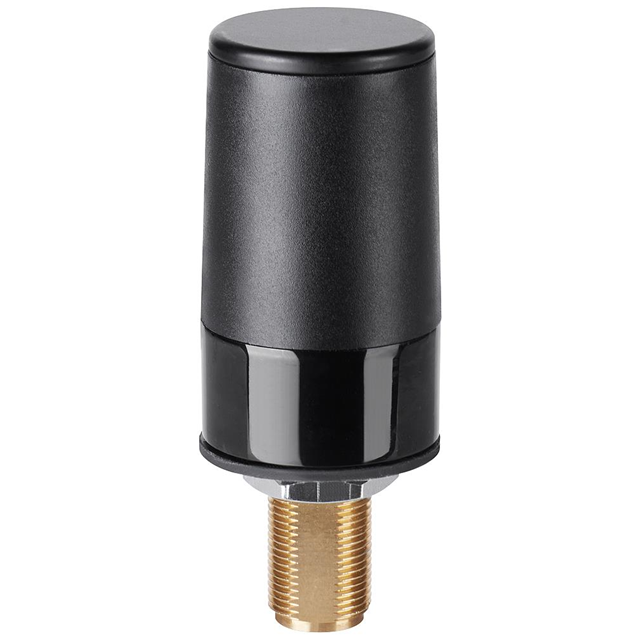

IRC ANTENNA ANT896-4ME

Search across all available documentation for this part.

Active

Siemens

IRC ANTENNA ANT896-4ME

Technical Specifications

Parameters and characteristics for this part

Specification	6GK58964ME000AA0

Antenna Type	Dome
Applications	LTE, UMTS, GSM
Frequency (Center/Band)	1.575 GHz, 850 MHz, 2.1 GHz, 800 MHz, 700 MHz, 900 MHz, 1.9 GHz, 1.8 GHz, 2.6 GHz, 1.7 GHz, 2.2 GHz
Frequency Group	Wide Band
Gain	3 dBi
Height (Max)	61 mm
Height (Max) [Max]	2.402 in
Mounting Type	Connector Mount
Number of Bands	11
Termination	N Type Female
VSWR	2

Part	Frequency (Center/Band)	Mounting Type	Height (Max) [Max]	Height (Max)	Number of Bands	Applications	VSWR	Antenna Type	Termination	Gain	Frequency Group
Siemens 6GK58964ME000AA0	1.575 GHz 1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.2 GHz 2.6 GHz 700 MHz 800 MHz 850 MHz 900 MHz	Connector Mount	2.402 in	61 mm	11	GSM LTE UMTS	2	Dome	N Type Female	3 dBi	Wide Band

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 226.89

General part information

RF ANTENNA GSM, LTE, UMTS Dome N Type Female Connector Mount
