957240-6002-AR

Active

3M (TC)

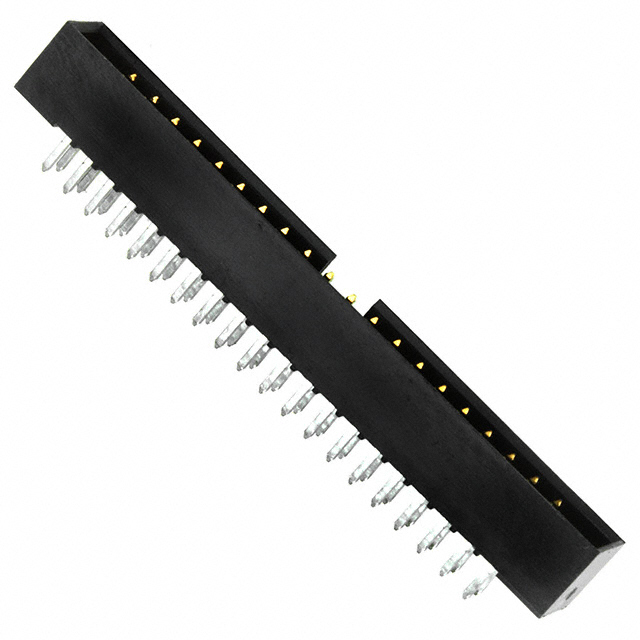

PIN HEADER, PCB HEADER, BOARD-TO-BOARD, 2 MM, 2 ROWS, 40 CONTACTS, THROUGH HOLE STRAIGHT

Search across all available documentation for this part.

Active

3M (TC)

PIN HEADER, PCB HEADER, BOARD-TO-BOARD, 2 MM, 2 ROWS, 40 CONTACTS, THROUGH HOLE STRAIGHT

Technical Specifications

Parameters and characteristics for this part

Specification	957240-6002-AR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

Part	Pitch - Mating [x]	Pitch - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Fastening Type	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Number of Positions	Insulation Height	Insulation Height	Contact Shape	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Mounting Type	Contact Type	Features	Connector Type	Termination	Shrouding	Insulation Material	Number of Rows	Number of Positions Loaded	Contact Material	Contact Length - Post	Contact Length - Post
3M (TC) 957240-2000-AR-PT	0.079 in	2 mm	-40 °C	105 ░C	UL94 V-0	Push-Pull	Tin	0.079 in	2 mm	Black	40	5.6 mm	0.22 in	Square	Gold	1 çm	39.4 çin	Flash	Surface Mount	Male Pin	Keying Slot Pick and Place	Header	Solder	Shrouded - 4 Wall	Thermoplastic	2	All	Copper Alloy
3M (TC) 957240-2000-AR-PR	0.079 in	2 mm	-40 °C	105 ░C	UL94 V-0	Push-Pull	Tin	0.079 in	2 mm	Black	40	5.6 mm	0.22 in	Square	Gold	1 çm	39.4 çin	Flash	Surface Mount	Male Pin	Keying Slot Pick and Place	Header	Solder	Shrouded - 4 Wall	Thermoplastic	2	All	Copper Alloy
3M (TC) 957240-6002-AR	0.079 in	2 mm	-40 °C	105 ░C	UL94 V-0	Push-Pull	Tin	0.079 in	2 mm	Black	40	5.6 mm	0.22 in	Square	Gold	1 çm	39.4 çin	Flash	Through Hole	Male Pin	Keying Slot	Header	Solder	Shrouded - 4 Wall	Thermoplastic	2	All	Copper Alloy	0.118 in	3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 40 position 0.079" (2.00mm)
