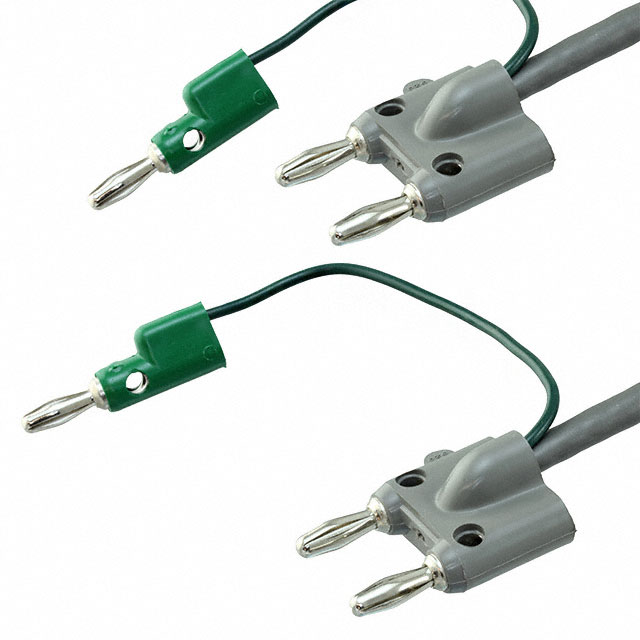

EM1167-120#

Active

Pomona Electronics

DBL BANANA, SHIELDED LINE, MTO BULK

Search across all available documentation for this part.

Active

Pomona Electronics

DBL BANANA, SHIELDED LINE, MTO BULK

Technical Specifications

Parameters and characteristics for this part

Specification	EM1167-120#

1st Connector	Banana Plug, w/Shielding Banana, Stackable, Double
2nd Connector	Banana Plug, Double, Stackable w/Shielding Banana
Configuration	Banana to Banana
Contents	Gray, Green Lead
Contents	1 Cable
Material - Insulation	Poly-Vinyl Chloride (PVC)
Stacking Method	Multi-Stacking, Front and Vertical
Type	Patch Cord
Voltage - Rated	1000 VAC
Voltage - Rated	1 kV
Wire Gauge	22, 20

Part	Stacking Method	Type	Wire Gauge	Material - Insulation	Voltage - Rated	Voltage - Rated	2nd Connector	Contents	Contents	1st Connector	Configuration
Pomona Electronics EM1167-120#	Multi-Stacking Front and Vertical	Patch Cord	20 22	Poly-Vinyl Chloride (PVC)	1000 VAC	1 kV	Banana Plug Double Stackable w/Shielding Banana	Gray Green Lead	1 Cable	Banana Plug Double Stackable w/Shielding Banana	Banana to Banana

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 62.89
		25	$ 62.04
Newark	Each	1	$ 72.99

General part information

120.0" (3048.00mm) Banana Plug, Double, Stackable w/Shielding Banana To Banana Plug, Double, Stackable w/Shielding Banana Patch Cord 1000VAC (1kV)
