C3CES-2618G

Obsolete

IDC CABLE - CKC26S/AE26G/CCE26S

Obsolete

IDC CABLE - CKC26S/AE26G/CCE26S

Description

General part information

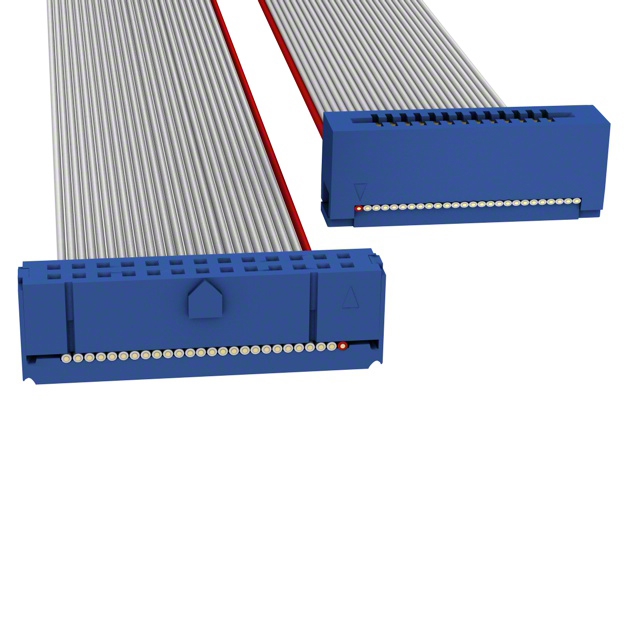

26 Position Cable Assembly Rectangular Socket to Card Edge 1.50' (457.20mm)

Parameters and characteristics for this part

Part	Cable Termination	Contact Finish Thickness	Number of Rows	Shielding	Pitch - Connector	Usage	Number of Positions	Features	Length	Color	Contact Finish	Pitch - Cable	Connector Type
CW Industries C3CES-2606G	IDC	100 µin	2	Unshielded	0.1 in	Board In	26	Polarizing Key	0.5 ft	Gray Ribbon	Tin	0.05 in	Socket to Card Edge
CW Industries C3CES-2036M	IDC	100 µin	2	Unshielded	0.1 in	Board In	20	Polarizing Key	3 ft	Multiple Ribbon	Tin	0.05 in	Socket to Card Edge
CW Industries C3CES-2618G	IDC	100 µin	2	Unshielded	0.1 in	Board In	26	Polarizing Key	1.5 ft	Gray Ribbon	Tin	0.05 in	Socket to Card Edge
CW Industries C3CES-2018G	IDC	100 µin	2	Unshielded	0.1 in	Board In	20	Polarizing Key	1.5 ft	Gray Ribbon	Tin	0.05 in	Socket to Card Edge
CW Industries C3CES-2636M	IDC	100 µin	2	Unshielded	0.1 in	Board In	26	Polarizing Key	3 ft	Multiple Ribbon	Tin	0.05 in	Socket to Card Edge
CW Industries C3CES-2636G	IDC	100 µin	2	Unshielded	0.1 in	Board In	26	Polarizing Key	3 ft	Gray Ribbon	Tin	0.05 in	Socket to Card Edge
CW Industries C3CES-2006G	IDC	100 µin	2	Unshielded	0.1 in	Board In	20	Polarizing Key	0.5 ft	Gray Ribbon	Tin	0.05 in	Socket to Card Edge
