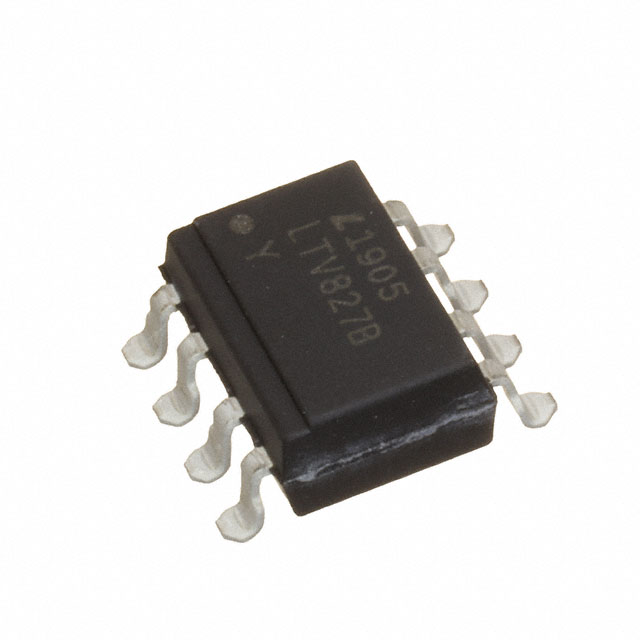

LTV-827S-B

Active

Diodes Inc

OPTOISOLATOR 5KV 2CH TRANS 8-SMD

Search across all available documentation for this part.

Active

Diodes Inc

OPTOISOLATOR 5KV 2CH TRANS 8-SMD

Technical Specifications

Parameters and characteristics for this part

Specification	LTV-827S-B

Current - DC Forward (If) (Max)	50 mA
Current - Output / Channel	50 mA
Current Transfer Ratio (Max)	260 %
Current Transfer Ratio (Min) [Min]	130 %
Input Type	DC
Mounting Type	Surface Mount
Number of Channels [custom]	2
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-30 ░C
Output Type	1.81 mOhm
Rise / Fall Time (Typ) [custom]	3 µs
Rise / Fall Time (Typ) [custom]	4 µs
Supplier Device Package	8-SMD
Vce Saturation (Max)	200 mV
Voltage - Output (Max) [Max]	35 V

Part	Current - Output / Channel	Current Transfer Ratio (Min) [Min]	Supplier Device Package	Vce Saturation (Max)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Max) [Max]	Current Transfer Ratio (Max)	Input Type	Mounting Type	Number of Channels [custom]	Current - DC Forward (If) (Max)
Diodes Inc LTV-827S-B	50 mA	130 %	8-SMD	200 mV	3 µs	4 µs	1.81 mOhm	-30 ░C	110 °C	35 V	260 %	DC	Surface Mount	2	50 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor Output 5000Vrms 2 Channel 8-SMD
