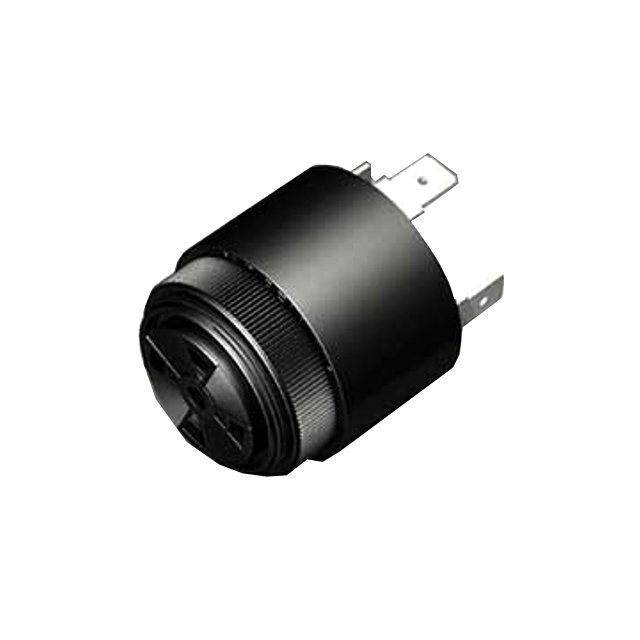

MB-09-948-Q(U)D

Active

Floyd Bell Inc

BUZZER PIEZO 35.8MM PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

MB-09-948-Q(U)D

Active

Floyd Bell Inc

BUZZER PIEZO 35.8MM PNL MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MB-09-948-Q(U)D	MB-09-948 Series

Approval Agency	-	UR, UL
Current - Supply [Max]	20 mA	20 mA
Current - Supply [Min]	5 mA	5 mA
Driver Circuitry	-	Internally Driven, Indicator
Frequency	2.9 kHz	2.9 kHz
Height - Seated (Max) [Max] [z]	35.05 mm	35.05 mm
Height - Seated (Max) [Max] [z]	1.38 in	1.38 in
Ingress Protection	-	IP68 - Dust Tight, Waterproof
Input Type	DC	DC
Operating Mode	Pulse, Fast	Pulse, Fast, Pulse, Medium, Slow
Port Location	Top	Top
Size / Dimension [diameter]	1.409 in	1.409 - 1.41 in
Size / Dimension [diameter]	35.8 mm	35.8 - 35.81 mm
Sound Pressure Level (SPL)	95 dB	95 dB
Technology	Piezo	Piezo
Termination	Quick Connect Tab - 0.250" (6.35mm)	Wire Leads, Screw Terminal, Quick Connect Tab - 0.250" (6.35mm), Quick Connect Tab - 0.250" (6.35mm)
Voltage Range [Max]	48 V	48 V
Voltage Range [Min]	9 V	9 V

MB-09-948 Series

BUZZER PIEZO 35.81MM PNL MNT

Part	Frequency	Sound Pressure Level (SPL)	Port Location	Approval Agency	Input Type	Voltage Range [Max]	Voltage Range [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Driver Circuitry	Technology	Termination	Ingress Protection	Operating Mode	Current - Supply [Min]	Current - Supply [Max]
Floyd Bell Inc MB-09-948-W(F)	2.9 kHz	95 dB	Top	UL, UR	DC	48 V	9 V	35.05 mm	1.38 in	1.41 in	35.81 mm	Indicator, Internally Driven	Piezo	Wire Leads	IP68 - Dust Tight, Waterproof	Fast, Pulse	5 mA	20 mA
Floyd Bell Inc MB-09-948-W(M)	2.9 kHz	95 dB	Top	UL, UR	DC	48 V	9 V	35.05 mm	1.38 in	1.41 in	35.81 mm	Indicator, Internally Driven	Piezo	Wire Leads	IP68 - Dust Tight, Waterproof	Pulse, Medium	5 mA	20 mA
Floyd Bell Inc MB-09-948-S(M)	2.9 kHz	95 dB	Top	UL, UR	DC	48 V	9 V	35.05 mm	1.38 in	1.41 in	35.81 mm	Indicator, Internally Driven	Piezo	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)	IP68 - Dust Tight, Waterproof	Pulse, Medium	5 mA	20 mA
Floyd Bell Inc MB-09-948-W(U)	2.9 kHz	95 dB	Top	UL, UR	DC	48 V	9 V	35.05 mm	1.38 in	1.409 in	35.8 mm	Indicator, Internally Driven	Piezo	Wire Leads	IP68 - Dust Tight, Waterproof	Fast, Pulse	5 mA	20 mA
Floyd Bell Inc MB-09-948-W(S)	2.9 kHz	95 dB	Top	UL, UR	DC	48 V	9 V	35.05 mm	1.38 in	1.409 in	35.8 mm	Indicator, Internally Driven	Piezo	Wire Leads	IP68 - Dust Tight, Waterproof	Pulse, Slow	5 mA	20 mA
Floyd Bell Inc MB-09-948-Q(U)	2.9 kHz	95 dB	Top		DC	48 V	9 V	35.05 mm	1.38 in	1.409 in	35.8 mm		Piezo	Quick Connect Tab - 0.250" (6.35mm)		Fast, Pulse	5 mA	20 mA
Floyd Bell Inc MB-09-948-S(U)	2.9 kHz	95 dB	Top		DC	48 V	9 V	35.05 mm	1.38 in	1.409 in	35.8 mm		Piezo	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)		Fast, Pulse	5 mA	20 mA
Floyd Bell Inc MB-09-948-Q(U)D	2.9 kHz	95 dB	Top		DC	48 V	9 V	35.05 mm	1.38 in	1.409 in	35.8 mm		Piezo	Quick Connect Tab - 0.250" (6.35mm)		Fast, Pulse	5 mA	20 mA
Floyd Bell Inc MB-09-948-Q(F)	2.9 kHz	95 dB	Top	UL, UR	DC	48 V	9 V	35.05 mm	1.38 in	1.41 in	35.81 mm	Indicator, Internally Driven	Piezo	Quick Connect Tab - 0.250" (6.35mm)	IP68 - Dust Tight, Waterproof	Fast, Pulse	5 mA	20 mA
Floyd Bell Inc MB-09-948-S(S)	2.9 kHz	95 dB	Top	UL, UR	DC	48 V	9 V	35.05 mm	1.38 in	1.41 in	35.81 mm	Indicator, Internally Driven	Piezo	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)	IP68 - Dust Tight, Waterproof	Pulse, Slow	5 mA	20 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.31

Description

General part information

MB-09-948 Series

Buzzers Piezo 5 ~ 20mA 2.9kHz 95dB @ 48V, 61cm Panel Mount Quick Connect Tab - 0.250" (6.35mm)

Documents

Technical documentation and resources

No documents available
