5-583616-2
ActiveTE Connectivity Raychem Cable Protection

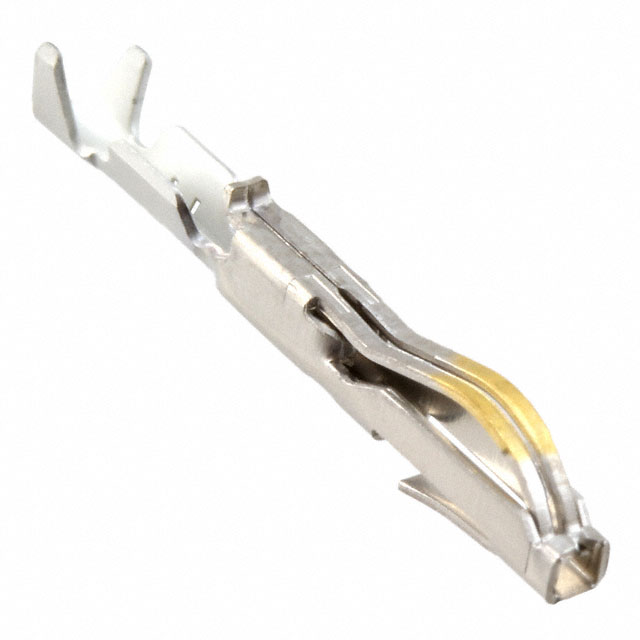

TERM EDGE TWIN LF 24-28AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
5-583616-2
ActiveTE Connectivity Raychem Cable Protection
TERM EDGE TWIN LF 24-28AWG CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-583616-2 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Phosphor Bronze |
| Contact Termination | Crimp |
| Pin or Socket | Non-Gendered |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.77 | |
| 10 | $ 0.74 | |||
| 25 | $ 0.74 | |||
| 50 | $ 0.71 | |||
| 100 | $ 0.60 | |||
| 250 | $ 0.56 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.46 | |||
| 2500 | $ 0.44 | |||
| Tape & Reel (TR) | 28000 | $ 0.38 | ||
Description
General part information
Twin Leaf Series
Standard Card Edge Connectors TYPE B 125P RA CARD
Documents
Technical documentation and resources
No documents available
