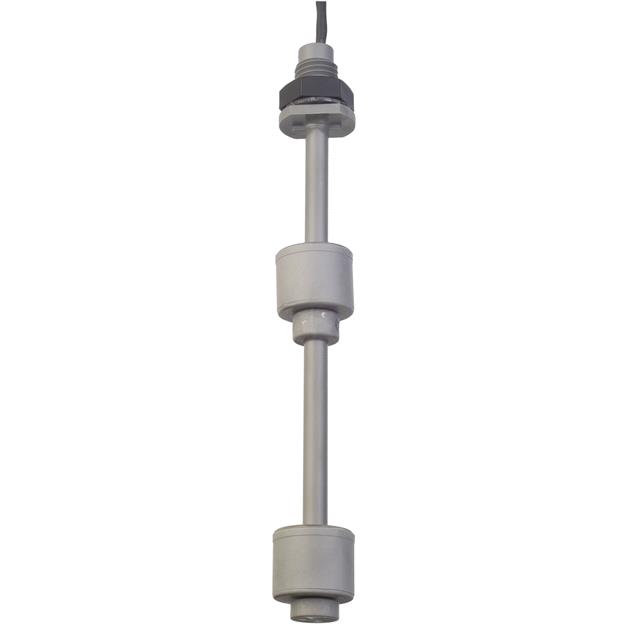

RSF66B50B150

Active

Sensata Technologies

SENSOR LEVEL SWITCH DUAL FLOAT

Search across all available documentation for this part.

Active

Sensata Technologies

SENSOR LEVEL SWITCH DUAL FLOAT

Technical Specifications

Parameters and characteristics for this part

Specification	RSF66B50B150

Current	600 mA
Material - Housing & Prism	Polypropylene Sulphide (PPS)
Minimum Liquid Specific Gravity [Min]	0.85
Mounting Type	M16x2 Thread, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-10 °C
Output Configuration	SPST-NC/NO
Output Type	Switch (2) (Dual Float)
Switch Actuation Level	5.906 in, 1.969 ", 150 mm, 50 mm
Type	Liquid
Voltage Rating	120 VDC, 240 VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material - Housing & Prism	Output Type	Type	Minimum Liquid Specific Gravity [Min]	Switch Actuation Level	Voltage Rating	Mounting Type	Output Configuration	Current	Switch Actuation Level
Sensata Technologies RSF66B50B150	-10 °C	85 °C	Polypropylene Sulphide (PPS)	Switch (2) (Dual Float)	Liquid	0.85	1.969 " 5.906 in 50 mm 150 mm	120 VDC 240 VAC	M16x2 Thread Panel Mount	SPST-NC/NO	600 mA
Sensata Technologies RSF66A25B125	-10 °C	85 °C	Polypropylene Sulphide (PPS)	Switch (2) (Single Float)	Liquid	0.85	1.181 " 4.921 in	120 VDC 240 VAC	M16x2 Thread Panel Mount	SPST-NC/NO	600 mA	30 mm 125 mm
Sensata Technologies RSF66A25B100P	-10 °C	85 °C	Polyphenylene Sulphide (PPS)	Switch (2) (Single Float)	Liquid	0.85	30 mm 100 mm	120 VDC 240 VAC	M16x2 Thread Panel Mount	SPST-NC/NO	600 mA	1.181 in 3.937 in
Sensata Technologies RSF66A25B175	-10 °C	85 °C	Polypropylene Sulphide (PPS)	Switch (2) (Single Float)	Liquid	0.85	1.181 " 6.89 in	120 VDC 240 VAC	M16x2 Thread Panel Mount	SPST-NC/NO	600 mA
Sensata Technologies RSF66A50A100P	-10 °C	85 °C	Polyphenylene Sulphide (PPS)	Switch (2) (Dual Float)	Liquid	0.85	1.969 " 3.937 " 50 mm 100 mm	120 VDC 240 VAC	M16x2 Thread Panel Mount	SPST-NC/NO	600 mA
Sensata Technologies RSF66A25B125P	-10 °C	85 °C	Polyphenylene Sulphide (PPS)	Switch (2) (Single Float)	Liquid	0.85	1.181 " 4.921 in	120 VDC 240 VAC	M16x2 Thread Panel Mount	SPST-NC/NO	600 mA	30 mm 125 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Liquid Level Sensor Switch (2) (Dual Float) SPST-NC/NO, SPST-NC/NO Output Panel Mount, M16x2 Thread
