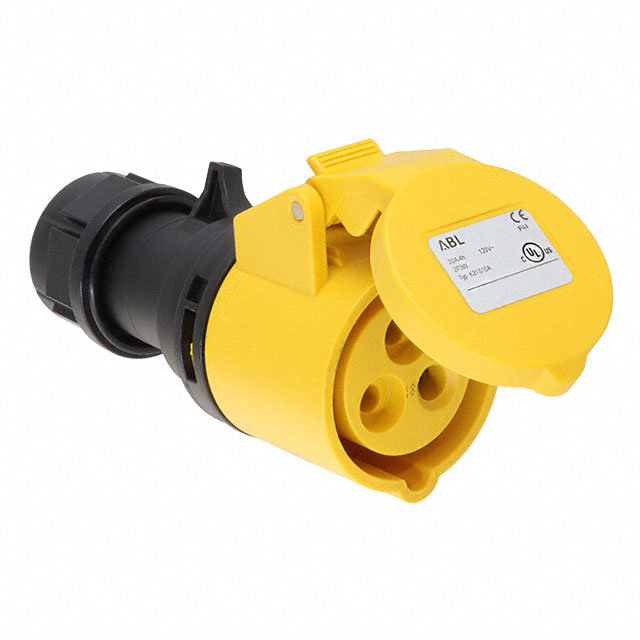

K31S10A

Active

TE Connectivity Raychem Cable Protection

PIN&SLEEVE CONNEC 20A 120VAC 2P

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

K31S10A

Active

TE Connectivity Raychem Cable Protection

PIN&SLEEVE CONNEC 20A 120VAC 2P

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	K31S10A

Approval Agency	cULus
Connector Style	Pin and Sleeve (2P3W)
Connector Type	Receptacle, Female Sockets
Current Rating (Amps)	20 A
Features	Push-Twist Lock, Cover, Chemical Resistant, Cord Grip, Strain Relief, Impact Resistant
Ingress Protection	IP44
Material Flammability Rating	UL94 V-2
Mounting Type	Free Hanging (In-Line)
Termination	Screw
Voltage Rating	120 VAC

K31S Series

Part	Connector Type	Mounting Type	Termination	Connector Style	Ingress Protection	Approval Agency	Voltage Rating	Material Flammability Rating	Features	Current Rating (Amps)
Altech Corporation K31S70A	Receptacle Female Sockets	Free Hanging (In-Line)	Screw	Pin and Sleeve (2P3W)	IP44	cULus	277 VAC/DC	UL94 V-2	Chemical Resistant Cord Grip Cover Impact Resistant Push-Twist Lock Strain Relief	20 A
TE Connectivity Raychem Cable Protection K31S10A	Receptacle Female Sockets	Free Hanging (In-Line)	Screw	Pin and Sleeve (2P3W)	IP44	cULus	120 VAC	UL94 V-2	Chemical Resistant Cord Grip Cover Impact Resistant Push-Twist Lock Strain Relief	20 A
Altech Corporation K31S10A	Receptacle Female Sockets	Free Hanging (In-Line)	Screw	Pin and Sleeve (2P3W)	IP44	cULus	120 VAC	UL94 V-2	Chemical Resistant Cord Grip Cover Impact Resistant Push-Twist Lock Strain Relief	20 A
TE Connectivity Raychem Cable Protection K31S50A	Receptacle Female Sockets	Free Hanging (In-Line)	Screw	Pin and Sleeve (2P3W)	IP44	cULus	480 VAC	UL94 V-2	Chemical Resistant Cord Grip Cover Impact Resistant Push-Twist Lock Strain Relief	20 A
Altech Corporation K31S50A	Receptacle Female Sockets	Free Hanging (In-Line)	Screw	Pin and Sleeve (2P3W)	IP44	cULus	480 VAC	UL94 V-2	Chemical Resistant Cord Grip Cover Impact Resistant Push-Twist Lock Strain Relief	20 A
TE Connectivity Raychem Cable Protection K31S25A	Receptacle Female Sockets	Free Hanging (In-Line)	Screw	Pin and Sleeve (2P3W)	IP67 - Dust Tight Waterproof	cULus	250 VAC	UL94 V-2	Chemical Resistant Cord Grip Cover Impact Resistant Push-Twist Lock Strain Relief	20 A
Altech Corporation K31S25A	Receptacle Female Sockets	Free Hanging (In-Line)	Screw	Pin and Sleeve (2P3W)	IP67 - Dust Tight Waterproof	cULus	250 VAC	UL94 V-2	Chemical Resistant Cord Grip Cover Impact Resistant Push-Twist Lock Strain Relief	20 A
Altech Corporation K31S55A	Receptacle Female Sockets	Free Hanging (In-Line)	Screw	Pin and Sleeve (2P3W)	IP67 - Dust Tight Waterproof	cULus	480 VAC	UL94 V-2	Chemical Resistant Cord Grip Cover Impact Resistant Push-Twist Lock Strain Relief	20 A
TE Connectivity Raychem Cable Protection K31S15A	Receptacle Female Sockets	Free Hanging (In-Line)	Screw	Pin and Sleeve (2P3W)	IP67 - Dust Tight Waterproof	cULus	120 VAC	UL94 V-2	Chemical Resistant Cord Grip Cover Impact Resistant Push-Twist Lock Strain Relief	20 A
Altech Corporation K31S15A	Receptacle Female Sockets	Free Hanging (In-Line)	Screw	Pin and Sleeve (2P3W)	IP67 - Dust Tight Waterproof	cULus	120 VAC	UL94 V-2	Chemical Resistant Cord Grip Cover Impact Resistant Push-Twist Lock Strain Relief	20 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.08
		10	$ 28.09
		25	$ 26.88
		50	$ 26.01
		100	$ 25.15
		250	$ 23.76
Newark	Each	1	$ 36.92
		25	$ 33.83
		50	$ 31.43
		100	$ 30.39
		250	$ 29.36

Description

General part information

K31S Series

Power Connector Receptacle, Female Sockets Pin and Sleeve (2P3W) Free Hanging (In-Line)

Documents

Technical documentation and resources
