C3R121210HCR

Active

Hammond Manufacturing

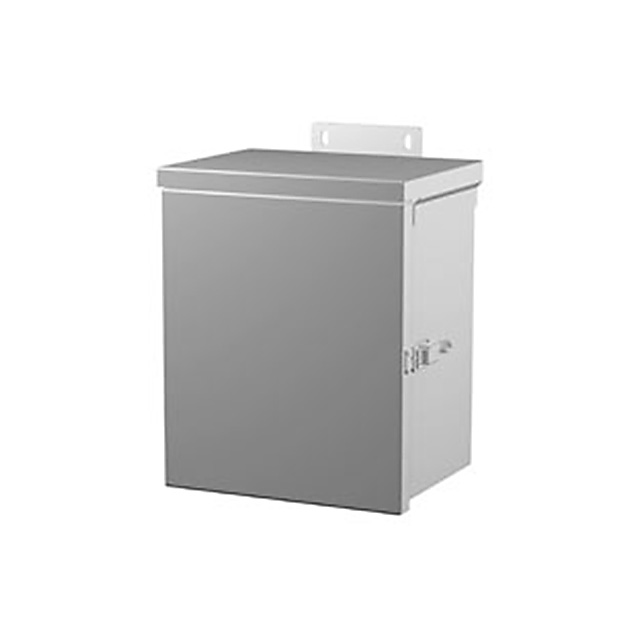

GRAY STEEL WALL MOUNT JUNCTION BOX

Search across all available documentation for this part.

Active

Hammond Manufacturing

GRAY STEEL WALL MOUNT JUNCTION BOX

Technical Specifications

Parameters and characteristics for this part

Specification	C3R121210HCR

Area (L x W) [custom]	929 cm˛
Area (L x W) [custom]	144 in˛
Color	Gray
Container Type	Box
Design	Hinged Door, Lid
Features	Snap Latch, Knockouts, Wall Mount, Steel Hinges
Height [z]	10 in
Height [z]	254 mm
Material	Metal, Steel
Ratings	IP24, UL-50, NEMA 3R
Size / Dimension [x]	12 in
Size / Dimension [x]	304.8 mm
Size / Dimension [y]	12 "
Size / Dimension [y]	304.8 mm
Thickness	16 Gauge
Weight	13 lbs
Weight	5.9 kg

Part	Height [z]	Height [z]	Features	Design	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Material	Thickness	Ratings	Weight	Weight	Area (L x W) [custom]	Area (L x W) [custom]	Color	Container Type
Hammond Manufacturing C3R121210HCR	10 in	254 mm	Knockouts Snap Latch Steel Hinges Wall Mount	Hinged Door Lid	12 "	12 in	304.8 mm	304.8 mm	Metal Steel	16 Gauge	IP24 NEMA 3R UL-50	13 lbs	5.9 kg	929 cm˛	144 in˛	Gray	Box

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Metal, Steel Gray Hinged Door, Lid 12.000" L x 12.000" W (304.80mm x 304.80mm) X 10.000" (254.00mm)
