Q-680200003003M
ActiveAmphenol Custom Cable

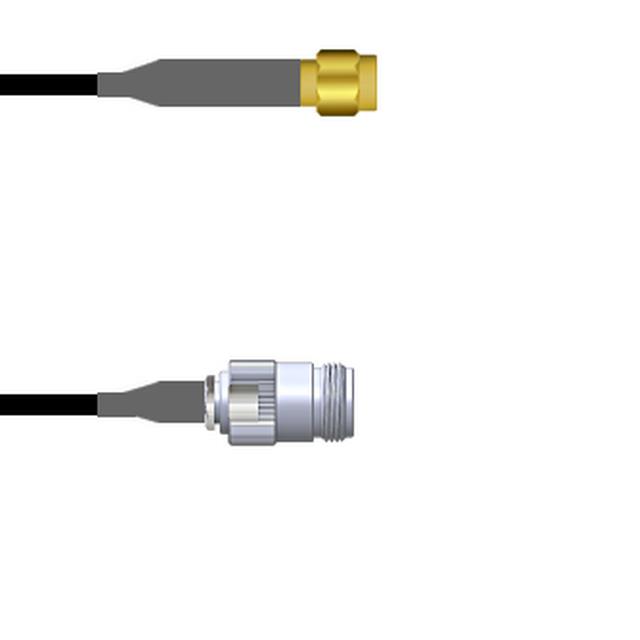

COAX CBL RP-SMA TO N-TYPE 9.8'
Deep-Dive with AI
Search across all available documentation for this part.
Q-680200003003M
ActiveAmphenol Custom Cable
COAX CBL RP-SMA TO N-TYPE 9.8'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-680200003003M |
|---|---|
| 1st Connector | RP-SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-174 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 1 GHz |
| Length | 3 m |
| Length | 118.1 in |
| Length | 9.8 ' |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 67.69 | |
| 25 | $ 66.37 | |||
| 50 | $ 65.05 | |||
| 100 | $ 63.73 | |||
| 250 | $ 62.42 | |||
Description
General part information
Q-680200 Series
Cable Assembly Coaxial RP-SMA to N-Type RG-174 118.1" (3.0m) 9.8'
Documents
Technical documentation and resources
No documents available
