HXCT-3.2-9

Obsolete

TE Connectivity Raychem Cable Protection

LABEL HEAT SHRINKABL 0.126"D WHT

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

LABEL HEAT SHRINKABL 0.126"D WHT

Technical Specifications

Parameters and characteristics for this part

Specification	HXCT-3.2-9

Color	White
For Use With/Related Products	TE3112, T6112DS, T2000CT, TE3124, T200
Label Size [diameter]	0.126 in
Label Size [diameter]	3.2 mm
Label Size [x]	3.28 '
Label Size [x]	1 m
Label Type	Heat Shrinkable
Material	Polyolefin (PO), Flame Retardant, Halogen Free, Irradiated, UV Stabilized
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C

Part	Material	Operating Temperature [Max]	Operating Temperature [Min]	Label Type	Label Size [diameter]	Label Size [x]	Label Size [diameter]	Label Size [x]	For Use With/Related Products	Color
TE Connectivity Raychem Cable Protection HXCT-3.2-9	Polyolefin (PO) Flame Retardant Halogen Free Irradiated UV Stabilized	105 ░C	-55 °C	Heat Shrinkable	0.126 in	3.28 '	3.2 mm	1 m	T200 T2000CT T6112DS TE3112 TE3124	White
TE Connectivity Raychem Cable Protection HXCT-6.4-9	Polyolefin (PO) Flame Retardant Halogen Free Irradiated UV Stabilized	105 ░C	-55 °C	Heat Shrinkable	0.25 in	3.28 '	0.25 in	1 m	T200 T2000CT T6112DS TE3112 TE3124	White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

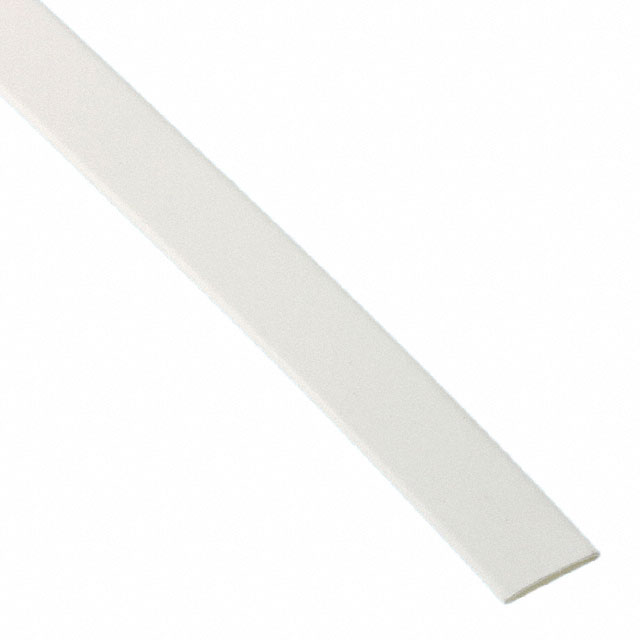

White Heat Shrinkable Label 0.126" Dia x 3.28' (3.20mm x 1.0m)
