SMP-1A36-6ST

Active

Standex-Meder Electronics

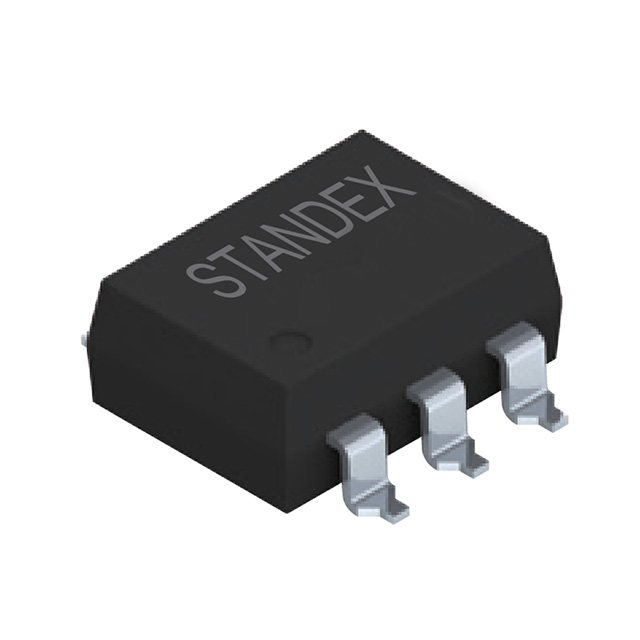

SSR RELAY SPST-NO 2.5A 0-60V

Deep-Dive with AI

Search across all available documentation for this part.

SMP-1A36-6ST

Active

Standex-Meder Electronics

SSR RELAY SPST-NO 2.5A 0-60V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.14
		10	$ 4.82
		25	$ 4.28
		50	$ 4.07
		150	$ 3.85
		300	$ 3.43
		600	$ 3.21
		1050	$ 3.00

Description

General part information

SMP-1A Series

Solid State SPST-NO (1 Form A) 6-SMD (0.300", 7.62mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SMP-1A36-6ST	SMP-1A Series

Approval Agency	-	AEC, cURus
Load Current	2.5 A	1.25 - 130 A
Mounting Type	Surface Mount	Surface Mount, Through Hole
On-State Resistance (Max)	-	160 mOhms
On-State Resistance (Max) [Max]	200 Ohm	24 - 200 Ohm
Operating Temperature [Max]	85 °C	55 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - -20 °C
Output Type	DC, AC	DC, AC
Package / Case	7.62 mm	4.4 - 7.62 mm
Package / Case	0.3 in	0.173 - 7.62 in
Package / Case	6-SMD	4-SOP, 4-SMD, Gull Wing, 6-DIP, 6-SMD
Package / Case	-	0.3 in
Supplier Device Package	6-SMD	4-SOP, 6-DIP, 6-SMD
Termination Style	Gull Wing	Gull Wing, PC Pin
Voltage - Input	1.17 VDC	1.17 - 1.37 VDC
Voltage - Input	-	1.5 VDC
Voltage - Input	-	1 V
Voltage - Load [Max]	60 V	60 - 1500 V
Voltage - Load [Min]	0 V	0 V

SMP-1A Series

SSR RELAY SPST-NO 1.25A 0-80V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	On-State Resistance (Max)	Supplier Device Package	Mounting Type	Output Type	Termination Style	Voltage - Input	Package / Case	Package / Case	Package / Case	Load Current	Voltage - Load [Max]	Voltage - Load [Min]	On-State Resistance (Max) [Max]	Package / Case	Voltage - Input [Max]	Voltage - Input [Min]
Standex-Meder Electronics SMP-1A47-4PT	85 °C	-40 °C	AEC, cURus	160 mOhms	4-SOP	Surface Mount	AC, DC	Gull Wing	1.37 VDC	4-SOP	0.173 in	4.4 mm	1.25 A	80 V	0 V
Standex-Meder Electronics SMP-1A31-4ST					4-SOP	Surface Mount	AC, DC	Gull Wing	1.17 VDC	4-SMD, Gull Wing			130 mA	350 V	0 V	24 Ohm
Standex-Meder Electronics SMP-1A36-6DT	85 °C	-40 °C			6-DIP	Through Hole	AC, DC	PC Pin	1.17 VDC	6-DIP	7.62 mm		2.5 A	60 V	0 V	70 mOhm	0.3 in
Standex-Meder Electronics SMP-1A30-4PT					4-SOP	Surface Mount	AC, DC	Gull Wing	1.17 VDC	4-SOP	0.173 in	4.4 mm	100 mA			24 Ohm
Standex-Meder Electronics SMP-1A40-6DT	85 °C	-40 °C			6-DIP	Through Hole	AC, DC	PC Pin	1.17 VDC	6-DIP	7.62 mm		50 mA	1500 V	0 V	200 Ohm	0.3 in
Standex-Meder Electronics SMP-1A30-4ST					4-SOP	Surface Mount	AC, DC	Gull Wing	1.17 VDC	4-SMD, Gull Wing			120 mA			24 Ohm
Standex-Meder Electronics SMP-1A31-4PT					4-SOP	Surface Mount	AC, DC	Gull Wing	1.17 VDC	4-SOP	0.173 in	4.4 mm	120 mA	350 V	0 V	24 Ohm
Standex-Meder Electronics SMP-1A38-4PT	55 °C	-20 C			4-SOP	Surface Mount	AC, DC	Gull Wing		4-SOP	0.173 in	4.4 mm	70 mA	600 V	0 V	60 Ohm		1.5 VDC	1 V
Standex-Meder Electronics SMP-1A38-4PT-Q	55 °C	-20 C			4-SOP	Surface Mount	AC, DC	Gull Wing	1.17 VDC	4-SOP	0.173 in	4.4 mm	70 mA	600 V	0 V	60 Ohm
Standex-Meder Electronics SMP-1A36-6ST	85 °C	-40 °C			6-SMD	Surface Mount	AC, DC	Gull Wing	1.17 VDC	6-SMD	0.3 in	7.62 mm	2.5 A	60 V	0 V	200 Ohm
