7445W 0605000

Active

Belden Inc.

CABLE 4COND 12AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 12AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	7445W 0605000

Cable Type	Multi-Conductor
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	65
Features	Oil Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	0.424 in
Jacket (Insulation) Diameter [diameter]	10.77 mm
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	1.194 mm
Jacket (Insulation) Thickness	0.047 in
Jacket Color	Chrome
Number of Conductors	4
Ratings	UL Style 20328
Wire Gauge	12 AWG

Part	Conductor Material	Conductor Insulation	Features	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Cable Type	Ratings	Length	Length	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material
Belden Inc. 7445W 0601000	Copper Bare	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	Oil Resistant UV Resistant	4	1.194 mm	0.047 in	12 AWG	Multi-Conductor	UL Style 20328	1000 ft	304.8 m	Chrome	0.424 in	10.77 mm	30 AWG	65	Thermoplastic Elastomer (TPE)
Belden Inc. 7445W 0605000	Copper Bare	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	Oil Resistant UV Resistant	4	1.194 mm	0.047 in	12 AWG	Multi-Conductor	UL Style 20328			Chrome	0.424 in	10.77 mm	30 AWG	65	Thermoplastic Elastomer (TPE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 7.31

General part information

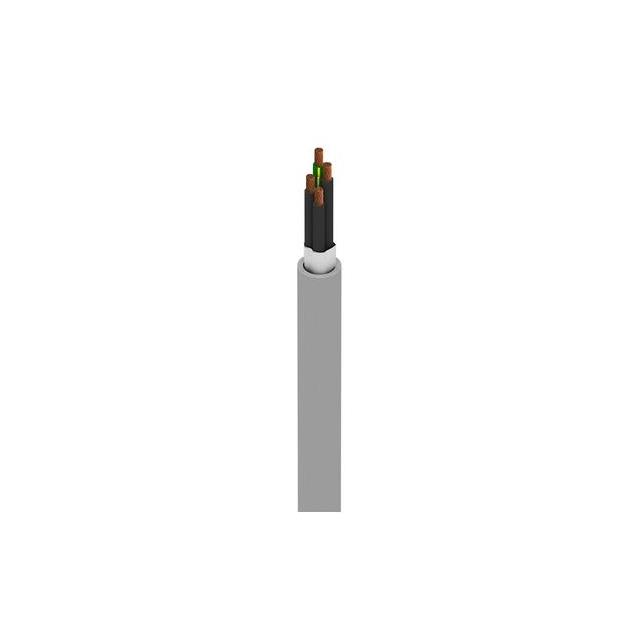

4 Conductor Multi-Conductor Cable Chrome 12 AWG 5000' (1524.0m)
