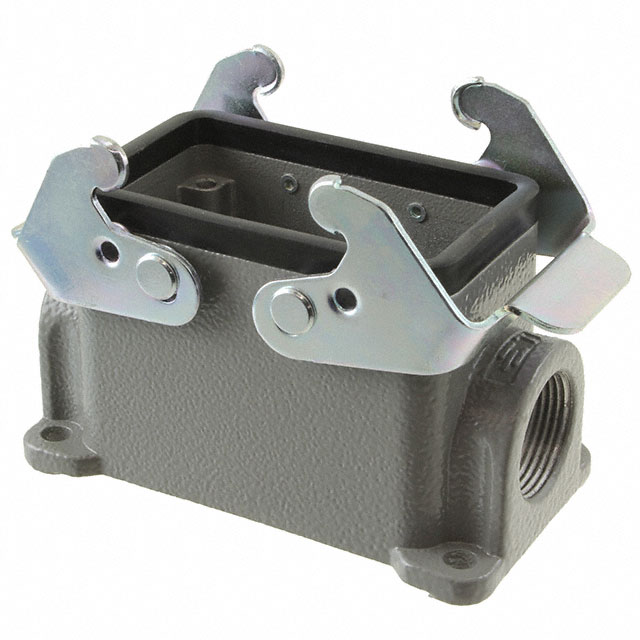

H10B-SGR-PG16

Active

TE Connectivity Raychem Cable Protection

CONN BASE SIDE SZ10B PG16

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

H10B-SGR-PG16

Active

TE Connectivity Raychem Cable Protection

CONN BASE SIDE SZ10B PG16

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	H10B-SGR-PG16

Connector Type	Base - Box Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Style	Side Entry
Thread Size	PG16

H10B Series

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Style	Thread Size	Size	Lock Location	Connector Type	Housing Color	Housing Finish	Housing Material	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Features
TE Connectivity Raychem Cable Protection H10B-TS-RO-M25	73 mm	60 mm	43 mm	2.874 in	2.362 "	1.693 in	Side Entry	M25	10B	Locking Clip (1) on Base Bottom	Hood	Gray	Powder Coated	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	125 °C	-40 °C
TE Connectivity Raychem Cable Protection H10B-SDRH-BO-2PG21	94 mm	75.6 mm	57 mm	3.701 "	2.976 "	2.244 "	Side Entry	PG21	10B	Locking Clip (2) on Hood	Base - Box Mount	Gray	Powder Coated	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	125 °C	-40 °C
TE Connectivity Raychem Cable Protection H10B-TSBH-PG29	73 mm	72 mm	43 mm	2.874 in	2.835 in	1.693 in	Side Entry	PG29	10B	Locking Clip (2) on Hood	Hood	Gray	Powder Coated	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	125 °C	-40 °C
TE Connectivity Raychem Cable Protection H10B-AG-LB							Bottom Entry		10B	Locking Clip (1) on Base Bottom	Base - Panel Mount	Gray	Powder Coated	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	125 °C	-40 °C
TE Connectivity Raychem Cable Protection H10B-AG-SL	95.2 mm	29.8 mm	45.7 mm	3.748 "	1.173 in	1.799 "	Bottom Entry		10B	Locking Clip (2) on Base Bottom	Base - Panel Mount	Gray	Powder Coated	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	125 °C	-40 °C
TE Connectivity Raychem Cable Protection H10B-SDRH-LB-2M32	94 mm	75.6 mm	57 mm	3.701 "	2.976 "	2.244 "	Side Entry	M32	10B	Locking Clip (1) on Base Bottom	Base - Box Mount	Gray	Powder Coated	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	125 °C	-40 °C
TE Connectivity Raychem Cable Protection H10B-TG-PG16	73 mm	60 mm	43 mm	2.874 in	2.362 "	1.693 in	Top Entry	PG16	10B	Locking Clip (2) on Base Bottom	Hood	Gray	Powder Coated	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	125 °C	-40 °C
TE Connectivity Raychem Cable Protection H10B-SDR-LB-PG16	94 mm	60.6 mm	52 mm	3.701 "	2.386 in	2.047 "	Side Entry	PG16	10B	Locking Clip (1) on Base Bottom	Base - Box Mount	Gray	Powder Coated	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Cover
TE Connectivity Raychem Cable Protection H10B-TG-M25	73 mm	60 mm	43 mm	2.874 in	2.362 "	1.693 in	Top Entry	M25	10B	Locking Clip (2) on Base Bottom	Hood	Gray	Powder Coated	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	125 °C	-40 °C
TE Connectivity Raychem Cable Protection H10B-SGR-PG16							Side Entry	PG16	10B	Locking Clip (2) on Base Bottom	Base - Box Mount	Gray	Powder Coated	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	125 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.54
		14	$ 11.30
		28	$ 10.99
		56	$ 10.58

Description

General part information

H10B Series

Base - Box Mount Connector Side Entry PG16 10B IP65 - Dust Tight, Water Resistant
